Wind field disturbance induced by tall vertical sand barriers： a wind tunnel simulation

doi:10.7522/j.issn.1000-694X.2025.00110

Journal of Desert Research ›› 2026, Vol. 46 ›› Issue (3): 32-41.DOI: 10.7522/j.issn.1000-694X.2025.00110

Previous Articles Next Articles

Wind field disturbance induced by tall vertical sand barriers： a wind tunnel simulation

Xixi Ma¹(), Jianhua Xiao²(), Zhengyi Yao², Xian Xue²^,³

^1.School of History，Culture and Tourism，Fuyang Normal University，Fuyang 236037，Anhui，China
^2.State Key Laboratory of Ecological Safety and Sustainable Development in Arid Lands /, Northwest Institute of Eco-Environment and Resources，Chinese Academy of Sciences，Lanzhou 730000，China
^3.Drylands Salinization Research Station, Northwest Institute of Eco-Environment and Resources，Chinese Academy of Sciences，Lanzhou 730000，China

Received:2025-06-09 Revised:2025-07-07 Online:2026-05-20 Published:2026-06-11
Contact: Jianhua Xiao

Abstract

Abstract:

Tall vertical high-density polyethylene （HDPE） sand barrier exhibits excellent mechanical properties and durability， demonstrating significant sand-blocking effectiveness in windbreak and sand-fixation projects. It has become a key protective measure widely adopted in areas severely affected by wind-blown sand， such as desert highways. This study employed wind tunnel simulations using sand samples collected from a severely sand-affected section of the S315 highway in Ejin Banner， Inner Mongolia， to investigate airflow disturbances and windbreak performance of sand barriers under varying combinations of barrier heights and incoming wind speeds. The results revealed that the barriers generated a well-defined three-zone structure（deceleration， acceleration， and deposition）on both the windward and leeward sides， with wind speed reduction being more pronounced on the leeward side. As barrier height increased， both deceleration zones expanded， with the leeward zone consistently broader and exhibiting greater wind attenuation in both rate and magnitude. Notably， the protective influence of the barrier extended to a downwind distance of up to 16 times its height （16H）.

Key words: tall vertical high-density polyethylene （HDPE） sand barrier, wind tunnel experiments, wind field disturbance, windbreak efficiency

CLC Number:

Xixi Ma, Jianhua Xiao, Zhengyi Yao, Xian Xue. Wind field disturbance induced by tall vertical sand barriers： a wind tunnel simulation[J]. Journal of Desert Research, 2026, 46(3): 32-41.

Figures/Tables 9

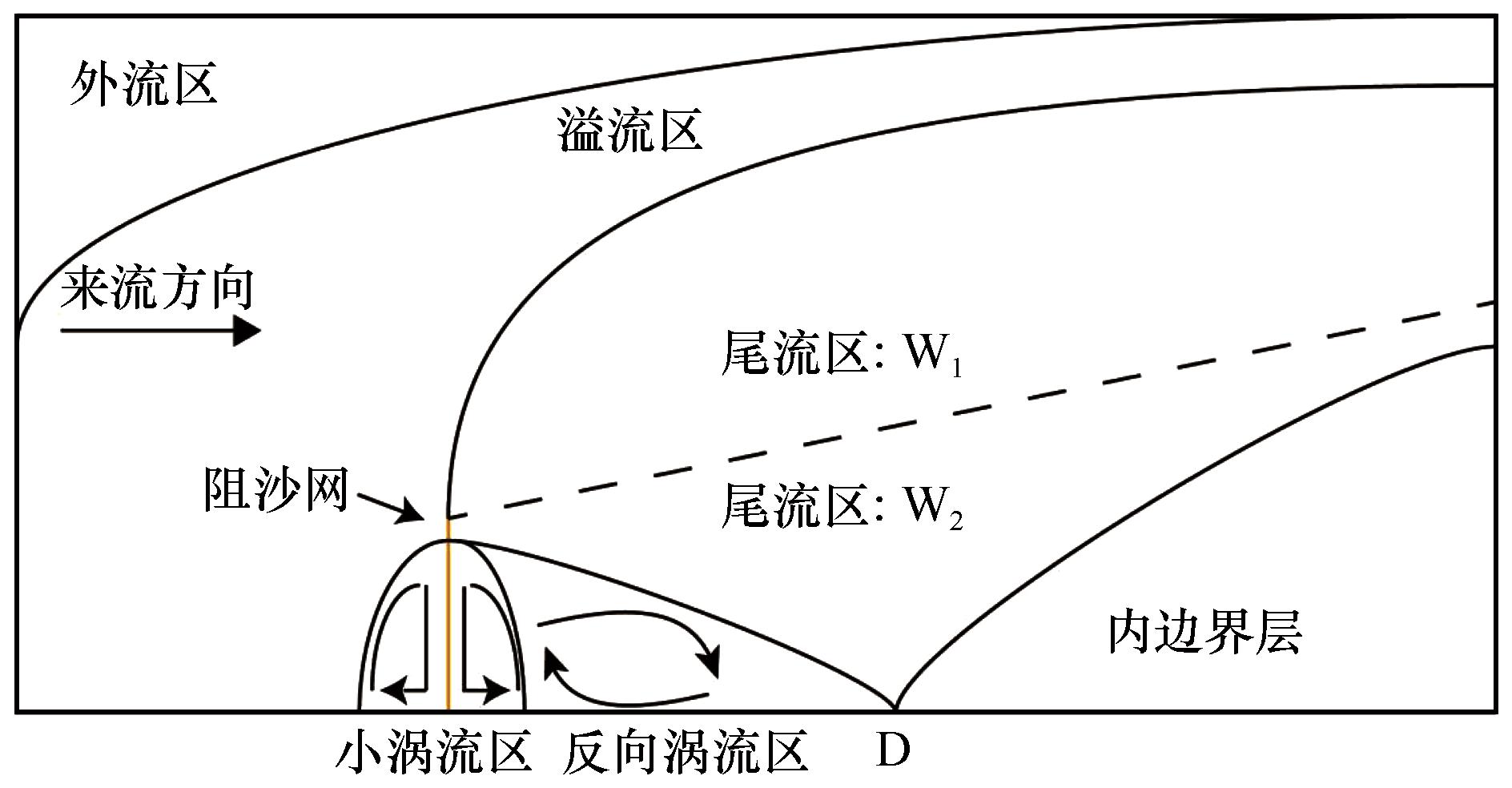

Fig.1 Typical regimes of air flow near a fence with low porosity［6-8］

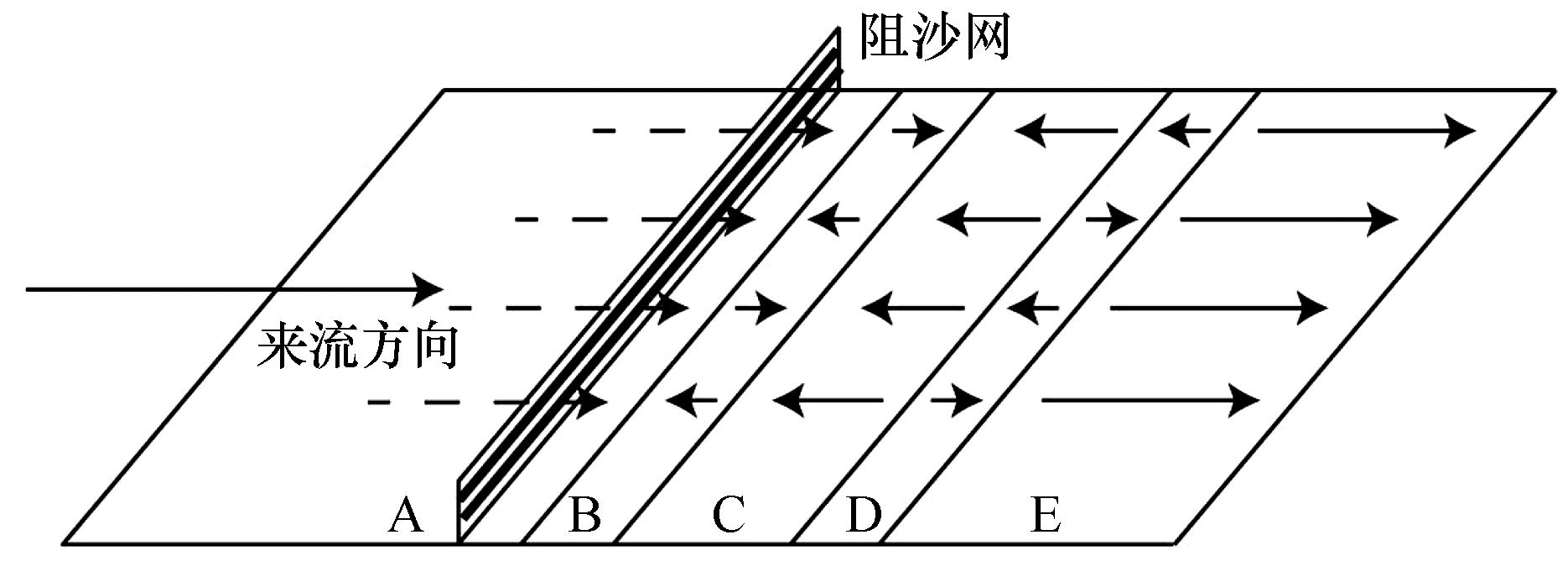

Fig.2 Regimes of particle movement near a fence with low porosity［9］

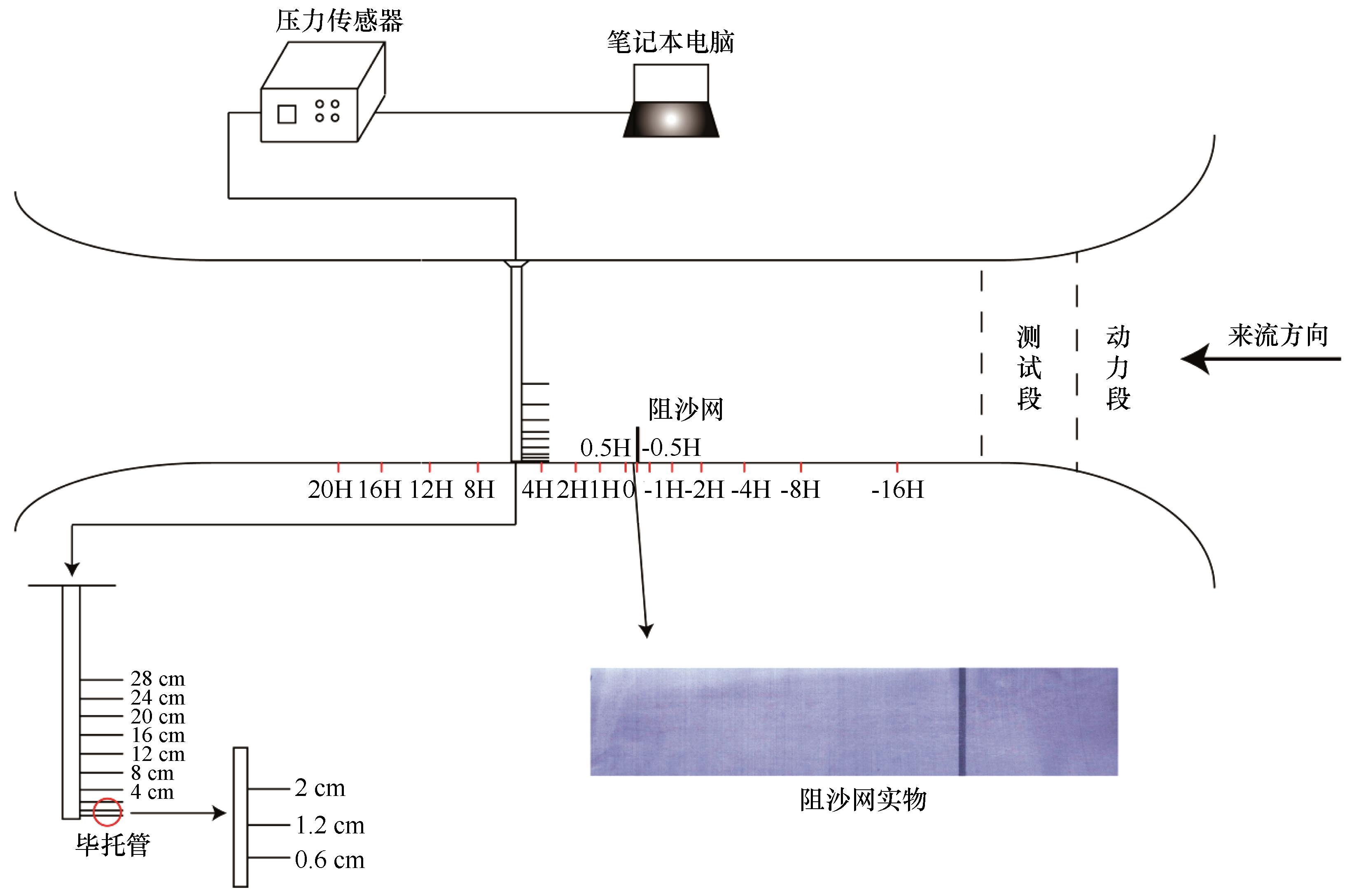

Fig.3 Layout of indoor wind tunnel experiment

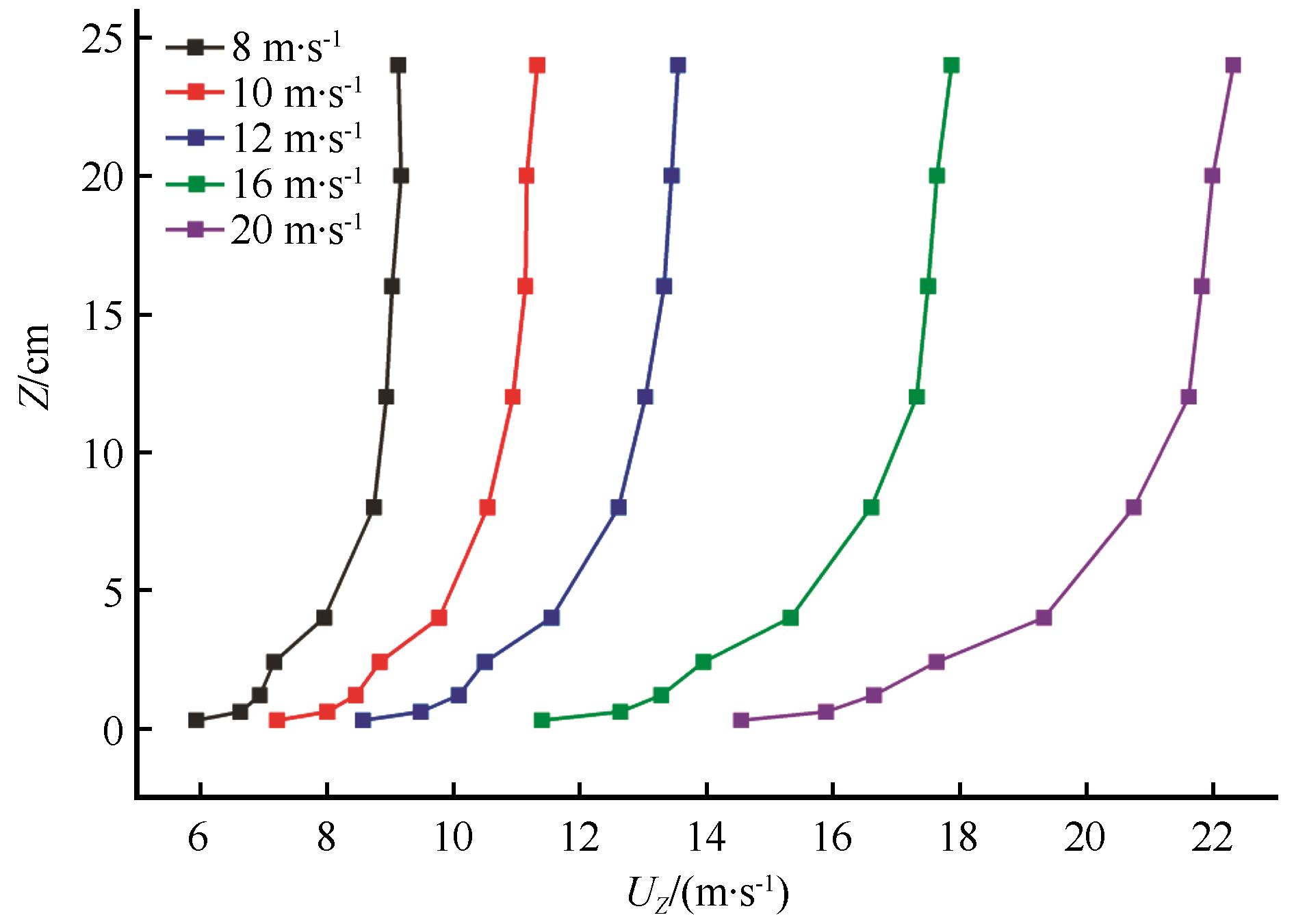

Fig.4 Wind speed profiles without fence

Table 1 The linear fit of the height Z with the wind speed UZ without fence

U/(m·s^-1)	Z与U_Z 的线性拟合	R²	Z₀/cm
8	lnZ = 1.2696U_Z - 8.6856	0.9726	0.00017
10	lnZ = 1.0221U_Z - 8.5251	0.9852	0.00020
12	lnZ = 0.8365U_Z - 8.2878	0.9861	0.00025
16	lnZ = 0.6468U_Z - 8.5006	0.9854	0.00020
20	lnZ = 0.5359U_Z - 8.8871	0.9864	0.00014

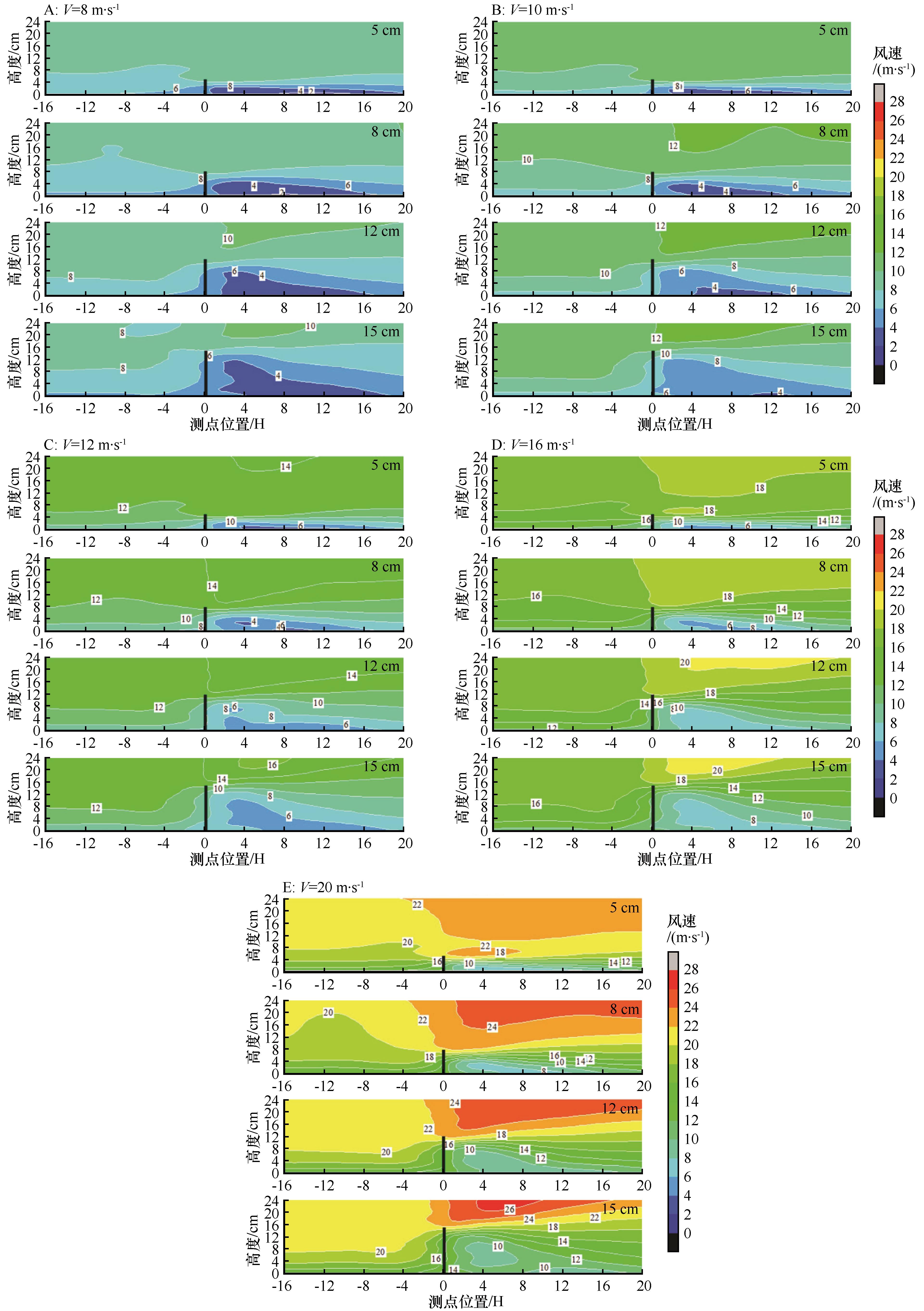

Fig.5 Flow fields around fences of different heights under under different inflow wind speeds

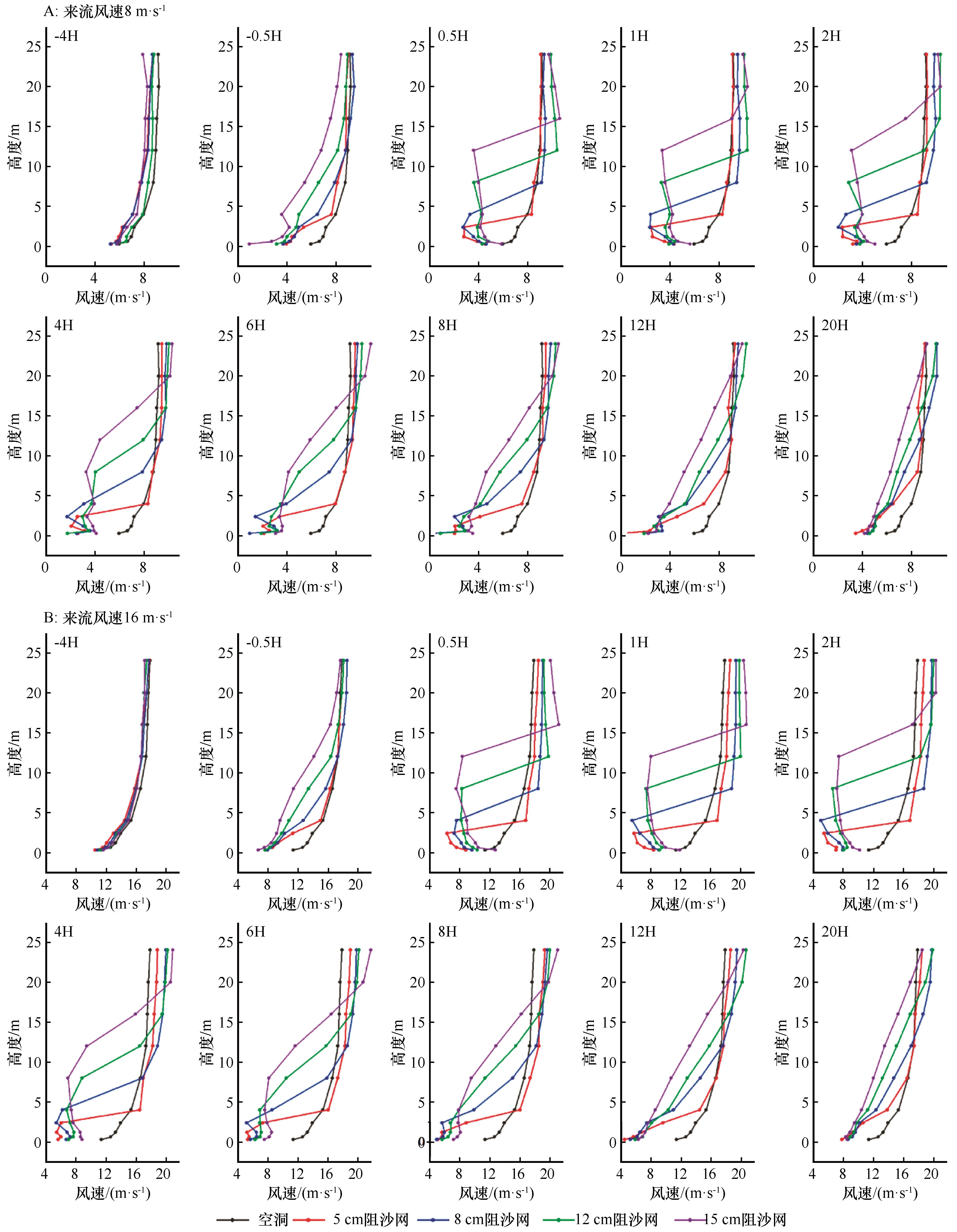

Fig.6 Wind speed profiles around fences of different heights under wind velocity of 8 m·s-1 and 16 m·s-1

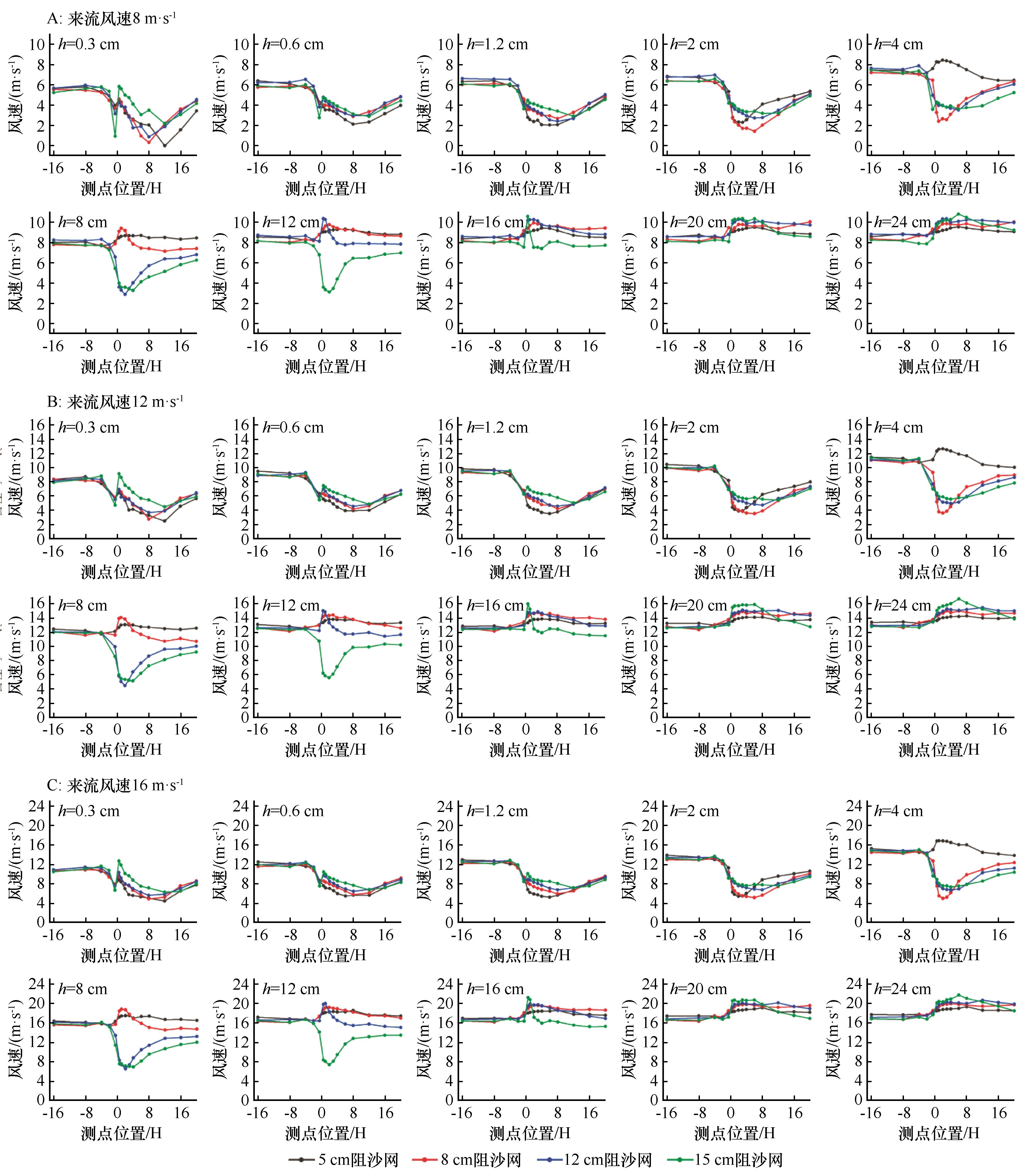

Fig.7 Distribution of flow velocity in horizontal direction of fences different inflow wind speeds

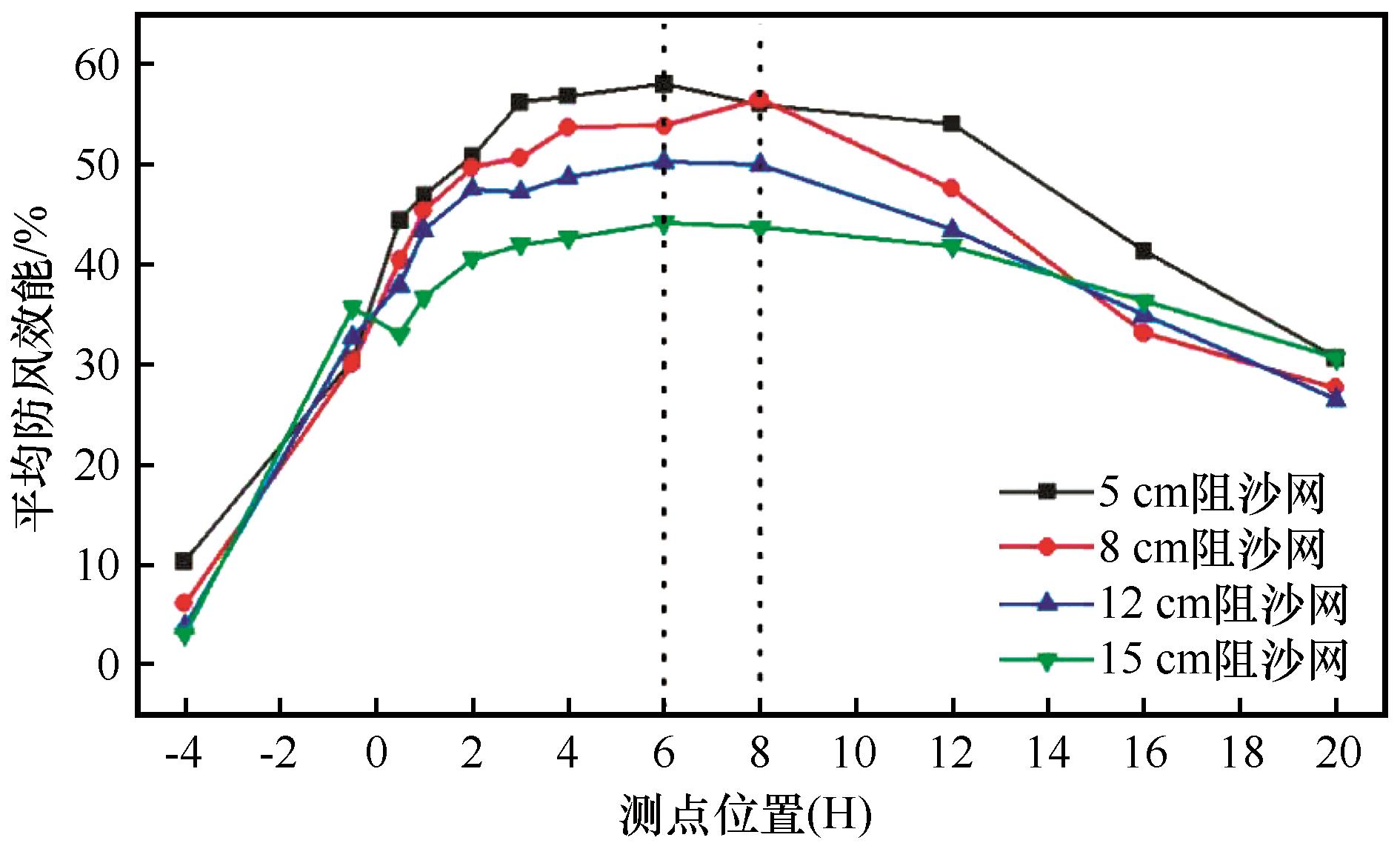

Fig.8 The average reduction coefficient of horizontal wind velocity of different height fences， when the wind speed is 12 m·s-1

References 24

[1]	Yao Z， Xiao J， Ma X，et al.Evaluation of the effectiveness of an expressway sand protection system in a gobi region：case study of the Ceke-Ejina expressway，Ejina Banner，China［J］.International Soil and Water Conservation Research，2025，13（1）：177-188.
[2]	汪万福，王涛，张伟民，等.敦煌莫高窟风沙危害综合防护体系设计研究［J］.干旱区地理，2005（5）：614-620.
[3]	倪成君，何海琦，张克存，等.华南沿海风沙危害防护体系及其效益分析［J］.中国沙漠，2011，31（5）：1098-1104.
[4]	张克存，屈建军，牛清河，等.青藏铁路沿线阻沙栅栏防护机理及其效应分析［J］.中国沙漠，2011，31（1）：16-20.
[5]	Plate E J.The aerodynamics of shelter belts［J］.Agricultural Meteorology，1971，8：203-222.
[6]	Judd M J， Raupach M R， Finnigan J J.A wind tunnel study of turbulent flow around single and multiple windbreaks，part I：velocity fields［J］.Boundary-layer Meteorology，1996，80（1）：127-165.
[7]	朱志昊，屈建军，赵爱国，等.两种形状镁水泥板沙障防风积沙效益的风洞试验［J］.中国沙漠，2024，44（2）：1-10.
[8]	罗万银，董治宝，钱广强，等.直立阻沙栅栏流场特征的风洞模拟实验［J］.中国沙漠，2009，29（2）：6.
[9]	Dong Z， Qian G， Luo W，et al.Threshold velocity for wind erosion：the effects of porous fences［J］.Environmental Geology，2006，51（3）：471-475.
[10]	Li B L， Sherman D J.Aerodynamics and morphodynamics of sand fences：a review［J］.Aeolian Research，2015，17：33-48.
[11]	Torita H， Satou H.Relationship between shelterbelt structure and mean wind reduction［J］.Agricultural and Forest Meteorology，2007，145（3/4）：186-194.
[12]	Dong Z B， Luo W Y， Qian G Q，et al.Evaluating the optimal porosity of fences for reducing wind erosion［J］.Sciences in Cold and Arid Regions，2011，3（1）：1-12.
[13]	Cornelis W M， Gabriels D.Optimal windbreak design for wind-erosion control［J］.Journal of Arid Environments，2005，61（2）：315-332.
[14]	Dong Z B， Luo W Y， Qian G Q，et al.A wind tunnel simulation of the mean velocity fields behind upright porous fences［J］.Agricultural and Forest Meteorology，2007，146（1/2）：82-93.
[15]	Yu Y P， Zhang C L， An Z S，et al.The blocking effect of the sand fences quantified using wind tunnel simulations［J］.Journal of Mountain Science，2020，17（10）：2485-2496.
[16]	Dong Z B， Luo W Y， Qian G Q，et al.A wind tunnel simulation of the turbulence fields behind upright porous wind fences［J］.Journal of Arid Environments，2010，74（2）：193-207.
[17]	Wang T， Qu J J， Ling Y Q，et al.Wind tunnel test on the effect of metal net fences on sand flux in a Gobi Desert，China［J］.Journal of Arid Land，2017，9（6）：888-899.
[18]	Lee S J， Park K C， Park C W.Wind tunnel observations about the shelter effect of porous fences on the sand particle movements［J］.Atmospheric Environment，2002，36（9）：1453-1463.
[19]	鱼燕萍，肖建华，屈建军，等.不同坡角公路路基流场的风洞实验［J］.中国沙漠，2018，38（3）：464-472.
[20]	Cheng J J， Lei J Q， Li S Y，et al.Disturbance of the inclined inserting-type sand fence to wind-sand flow fields and its sand control characteristics［J］.Aeolian Research，2016，21：139-150.
[21]	Xiao J H， Yao Z Y， Qu J J.Influence of Golmud-Lhasa section of Qinghai-Tibet Railway on blown sand transport［J］.Chinese Geographical Science，2015，25（1）：39-50.
[22]	Cheng J J， Jiang F Q， Xue C X，et al.Characteristics of the disastrous wind-sand environment along railways in the gobi area of Xinjiang，China［J］.Atmospheric Environment，2015，102：344-354.
[23]	Heisler G M， Dewalle D R.Effects of windbreak structure on wind flow［J］.Agriculture Ecosystems & Environment，1988，22（3）：41-69.
[24]	罗万银，董治宝，钱广强.栅栏最佳疏透度的空气动力学评价［J］.中国沙漠，2009，29（4）：583-588.
