Formation and evolution of granule ripples on an artificial flattening surface

doi:10.7522/j.issn.1000-694X.2025.00128

Journal of Desert Research ›› 2026, Vol. 46 ›› Issue (2): 53-62.DOI: 10.7522/j.issn.1000-694X.2025.00128

Previous Articles Next Articles

Formation and evolution of granule ripples on an artificial flattening surface

Yuxuan Meng¹^,²(), Guangqiang Qian¹, Zhuanling Yang³, Xuegang Xing³, Kaijia Pan¹^,², Youyuan Guo¹

^1.State Key Laboratory of Ecological Safety and Sustainable Development in Arid Lands，Northwest Institute of Eco-Environment and Resources，Chinese Academy of Sciences，Lanzhou 730000，China
^2.University of Chinese Academy of Sciences，Beijing 100049，China
^3.School of Geography and Resources，Guizhou Education University，Guiyang 550018，China

Received:2025-05-29 Revised:2025-07-23 Online:2026-03-20 Published:2026-04-13

Abstract

Abstract:

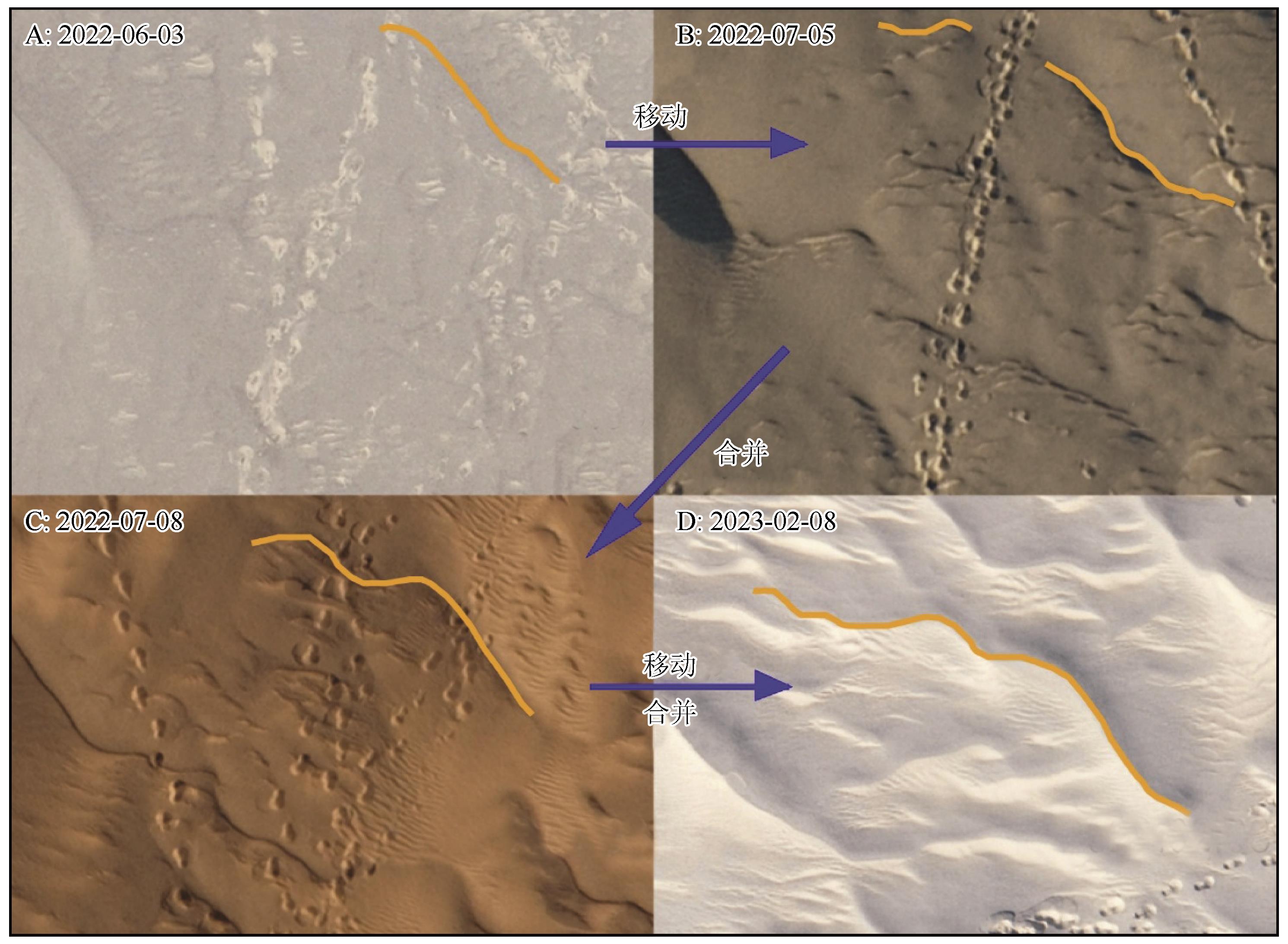

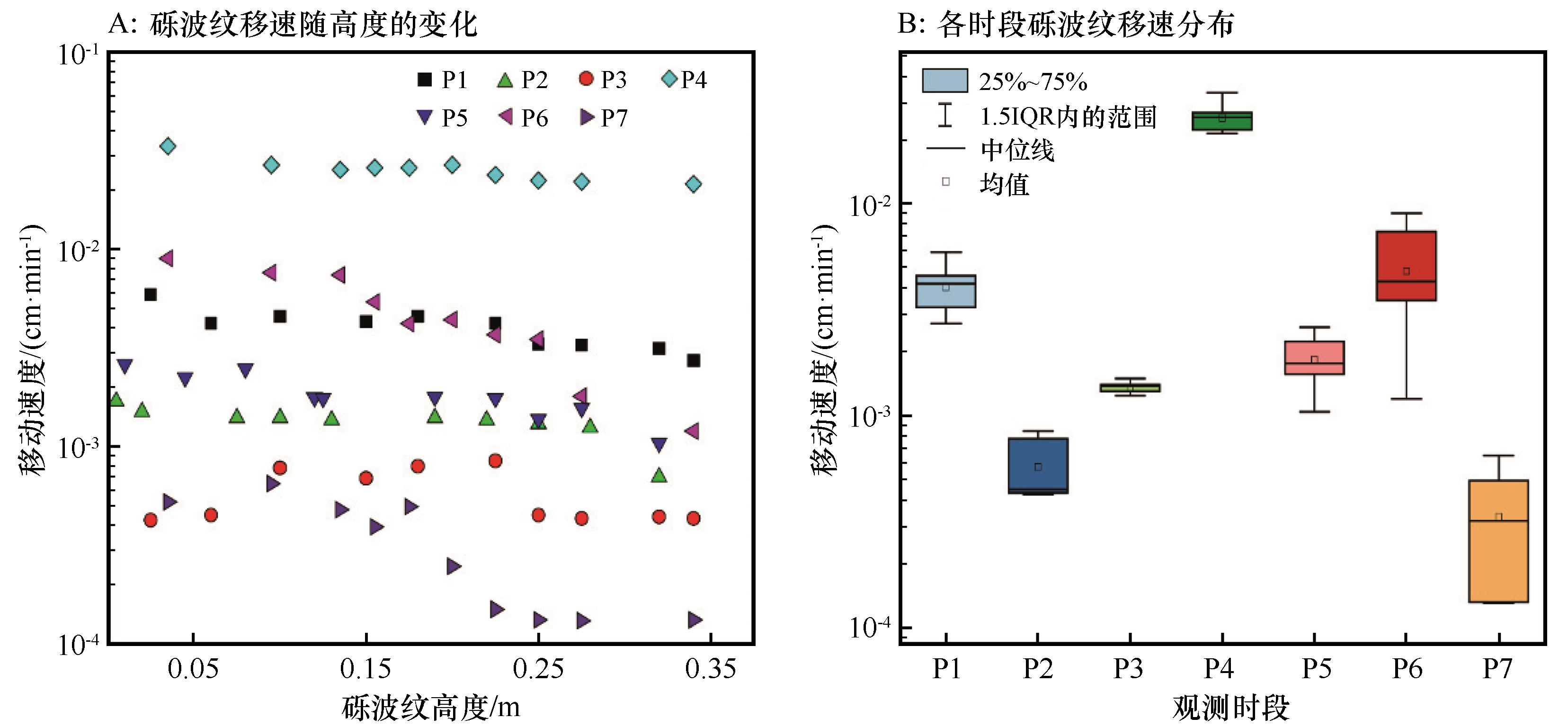

Granule ripples are aeolian landforms composed of bimodal grain-sized sediments and are widely distributed on Earth and Mars. Since previous studies have not correlated the evolution process of granule ripples with dynamic forces， in order to explore the relationship between morphological evolution and dynamics， this study flattened a typical granule ripple area in the Sanlongsha region. Through in-situ field observation of its evolution process， three-dimensional topographic data were obtained， and the relationships among morphological changes， movement patterns， and wind conditions were analyzed. The results show that 91 granule ripples were formed in the early stage of evolution， with an average length of 1.09 m and an average height of 0.06 m. After the fusion of granule ripples with different movement speeds， the number decreased， the length increased， the overall movement speed slowed down， and the spacing increased. They returned to a mature state in about nine months. Subsequently， gale weather caused the granule ripples to decompose. The number increased to four times the original， the length shrank to 1/4 of the original， the number of ridge lines further increased， and the granule ripples underwent processes of fracture， re-formation， and then re-merging. Through in-situ observation， this study makes up for the deficiencies of previous studies due to equipment and technical limitations. It reveals the formation and evolution process of granule ripples on flat surfaces， which is of great significance for in-depth understanding of their dynamic processes. At the same time， it also provides important references for understanding aeolian landforms such as giant ripples and transverse sand ridges on Mars.

Key words: granule ripple, formation and evolution, morphological parameters, movement velocity, wind conditions

CLC Number:

P931.3

Yuxuan Meng, Guangqiang Qian, Zhuanling Yang, Xuegang Xing, Kaijia Pan, Youyuan Guo. Formation and evolution of granule ripples on an artificial flattening surface[J]. Journal of Desert Research, 2026, 46(2): 53-62.

Figures/Tables 9

References 34

[1]	Sharp R P.Wind ripples［J］.Journal of Geology，1963，71：617-636.
[2]	王鹏.贴地表风沙输运及沙波纹形成演化机理研究［D］.兰州：兰州大学，2020.
[3]	董治宝，苏志珠，钱广强，等.库姆塔格沙漠风沙地貌［M］.北京：科学出版社，2011.
[4]	董治宝，吕萍，李超，等.火星独特风沙地貌之横向沙脊［J］.地球科学进展，2020，35（7）：661-677.
[5]	Lancaster N.Geomorphology of Desert Dunes［M］.London，UK：Routledge，2023.
[6]	Bagnold R A.The Physics of Blown Sand and Desert Dunes［M］.London，UK：Methuen，1941.
[7]	Ellwood J M， Evans P D， Wilson I G.Small scale aeolian bed‐forms［J］.Journal of Sedimentary Petrology，1975，45：554-561.
[8]	Yizhaq H， Katra I.Morphology and dynamics of aeolian mega-ripples in Nahal Kasuy，southern Israel［J］.Israel Journal of Earth Sciences，2009，57：149-165.
[9]	Zimbelman R J， Irwin P R， Williams H S，et al.The rate of granule ripple movement on Earth and Mars［J］.Icarus，2009，203（1）：71-76.
[10]	Fryberger S G， Hesp P， Hastings K.Aeolian granule ripple deposits，Namibia［J］.Sedimentology，1992，39（2）：319-331.
[11]	Mountney P N， Russell J A.Sedimentology of cold-climate aeolian sandsheet deposits in the Askja region of Northeast Iceland［J］.Sedimentary Geology，2003，166（3）：223-244.
[12]	周坤，韩庆杰，屈建军，等.颗粒波纹粒度特征：以敦煌雅丹、三垄沙和托克逊地区为例［J］.中国沙漠，2025，45（1）：44-54.
[13]	王利杰，肖锋军，董治宝，等.柴达木盆地巨型沙波纹条带表层沉积物粒度和地球化学元素组成特征［J］.干旱区地理，2023，46（11）：1826-1835.
[14]	Qian G， Yang Z， Xing X，et al.Seasonal morphological evolution and migration of granule ripples in the Sanlongsha Dune Field，northern Kumtagh Sand Sea，China［J］.Geomorphology，2024，444：108951.
[15]	郭酉元，钱广强，杨转玲，等.库姆塔格沙漠三垄沙地区砾波纹形态、粒度及环境风况［J］.中国沙漠，2024，44（4）：37-45.
[16]	钱广强，杨转玲，邢学刚，等.砾波纹地表风沙颗粒蠕移特征及其地貌学意义［J］.中国沙漠，2024，44（6）：287-298.
[17]	Katra I， Yizhaq H， Kok F J.Mechanisms limiting the growth of aeolian megaripples［J］.Geophysical Research Letters，2014，41（3）：858-865.
[18]	杨转玲，钱广强，邢学刚，等.库姆塔格沙漠北部三垄沙地区砾波纹形态和表面流场［J］.中国沙漠，2025，45（2）：225-235.
[19]	Foroutan M， Zimbelman J.Mega-ripples in Iran：a new analog for transverse aeolian ridges on Mars［J］.Icarus，2016，274：99-105.
[20]	Silvestro S， Chojnacki M， Vaz A D，et al.Megaripple migration on Mars［J］.Journal of Geophysical Research：Planets，2020，125（8）：006446.
[21]	俄有浩，苏志珠，王继和，等.库姆塔格沙漠综合科学考察成果初报［J］.中国沙漠，2006，26（5）：693-697.
[22]	王继和，廖空太，俄有浩，等.库姆塔格沙漠综合科学考察的初步结果［J］.甘肃科技，2005（10）：14-16.
[23]	徐志伟，鹿化煜，赵存法，等.库姆塔格沙漠地表物质组成、来源和风化过程［J］.地理学报，2010，65（1）：53-64.
[24]	余小龙，胡学奎.GPS RTK技术的优缺点及发展前景［J］.测绘通报，2007（10）：39-41.
[25]	金伟，葛宏立，杜华强，等.无人机遥感发展与应用概况［J］.遥感信息，2009（1）：88-92.
[26]	Fryberger S G.Dune forms and wind regime［M］//Mckee E D.A Study of Global Sand Seas.Washington，USA：U.S.Goverment Printing Office，1979.
[27]	Wang L， Xiao F， Dong Z，et al.Megaripple stripes in the Qaidam Basin，China：morphology，grain size and sedimentary characteristics［J］.Geomorphology，2024，461：109301.
[28]	Kocurek G， Ewing C R.Aeolian dune field self-organization：implications for the formation of simple versus complex dune-field patterns［J］.Geomorphology，2005，72（1/2）：94-105.
[29]	伊力哈木·伊马木，李菊艳，玉米提·吾提库尔，等.起沙风速的观测方式及其影响因素研究综述［J］.中国水土保持，2021（5）：42-44.
[30]	Isenberg O， Yizhaq H， Tsoar H，et al.Megaripple flattening due to strong winds［J］.Geomorphology，2011，131（3/4）：69-84.
[31]	梁爱民，屈建军，董治宝，等.库姆塔格沙漠沉积物粒度端元特征及其物源启示［J］.中国沙漠，2020，40（2）：33-42.
[32]	Zimbelman R J， Foroutan M.Dingo Gap：curiosity went up a small transverse aeolian ridge and came down a megaripple［J］.Journal of Geophysical Research-Planets，2020，125（12）：006489.
[33]	Yizhaq H， Katra I.Longevity of aeolian megaripples［J］.Earth and Planetary Science Letters，2015，422：28-32.
[34]	Lämmel M， Meiwald A， Yizhaq H，et al.Aeolian sand sorting and megaripple formation［J］.Nature Physics，2018，14（7）：759-765.

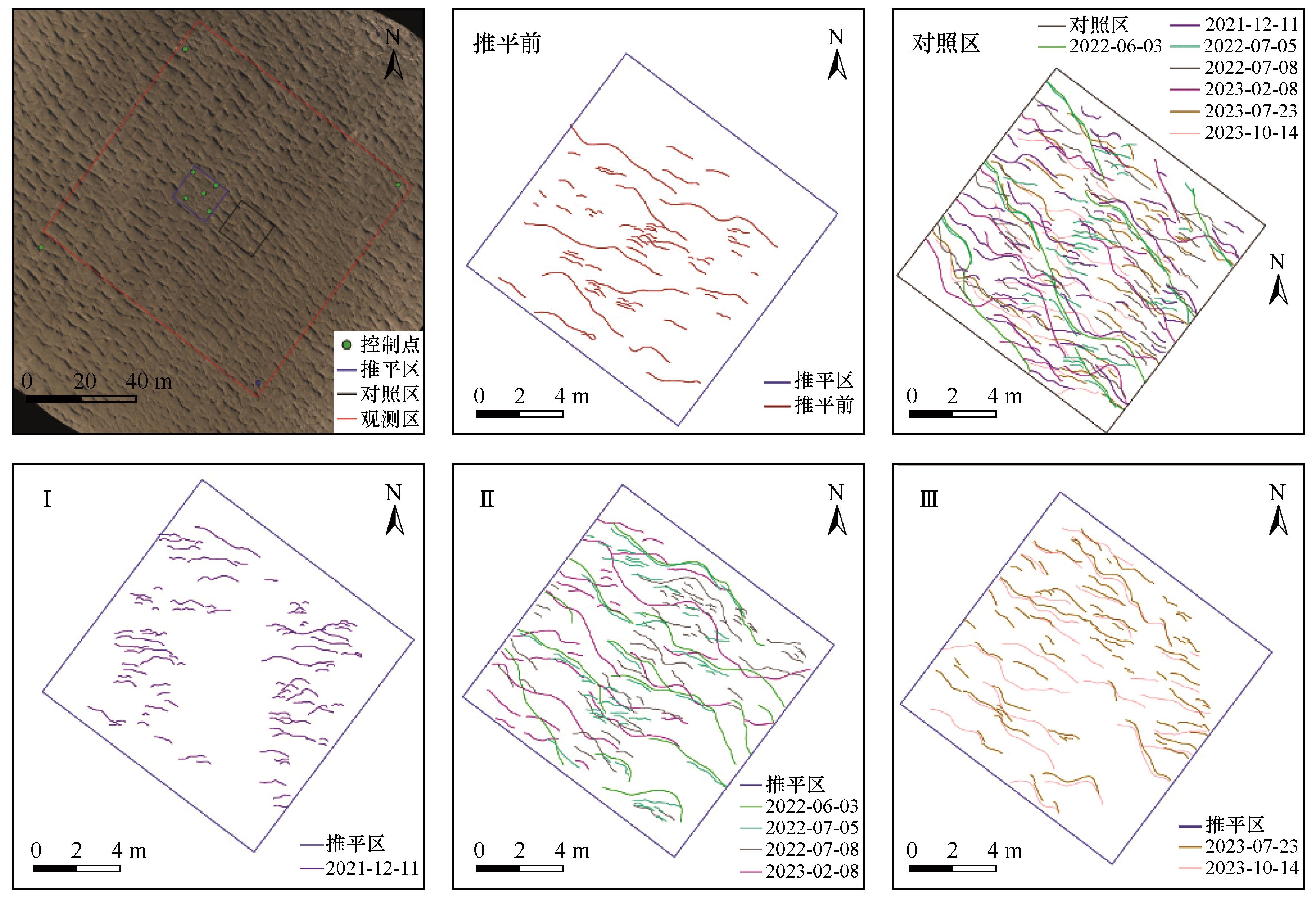

观测日期	脊线数目/条	脊线长度/m	间距/m	脊线走向/(°)	平均高度/m	曲度
2021-09-25	67	1.47	1.14	111.3	0.13	1.05
2021-12-11	91	1.09	0.39	95.2	0.06	1.07
2022-06-03	13	5.24	2.53	123.5	0.09	1.04
2022-07-05	49	1.24	1.03	100.2	0.09	1.04
2022-07-08	63	1.10	1.65	112.7	0.11	1.07
2023-02-08	36	2.96	2.56	99.1	0.19	1.04
2023-07-23	83	1.27	0.74	108.4	0.12	1.07
2023-10-14	28	3.36	1.12	99.3	0.13	1.09

观测日期	脊线数目/条	脊线长度/m	间距/m	脊线走向/(°)	平均高度/m	曲度
2021-09-25	67	1.47	1.14	111.3	0.13	1.05
2021-12-11	91	1.09	0.39	95.2	0.06	1.07
2022-06-03	13	5.24	2.53	123.5	0.09	1.04
2022-07-05	49	1.24	1.03	100.2	0.09	1.04
2022-07-08	63	1.10	1.65	112.7	0.11	1.07
2023-02-08	36	2.96	2.56	99.1	0.19	1.04
2023-07-23	83	1.27	0.74	108.4	0.12	1.07
2023-10-14	28	3.36	1.12	99.3	0.13	1.09

观测日期	脊线数目/条	脊线长度/m	间距/m	脊线走向/(°)	平均高度/m	曲度
2021-12-11	53	1.74	0.59	98.8	0.09	1.21
2022-06-03	6	7.99	3.42	132.0	0.17	1.02
2022-07-05	37	1.59	1.39	98.9	0.16	1.06
2022-07-08	45	1.63	2.62	114.6	0.13	1.14
2023-02-08	20	3.33	2.64	109.8	0.22	1.00
2023-07-23	48	1.59	0.76	111.2	0.13	1.05
2023-10-14	21	3.68	1.13	99.6	0.13	1.12

观测日期	脊线数目/条	脊线长度/m	间距/m	脊线走向/(°)	平均高度/m	曲度
2021-12-11	53	1.74	0.59	98.8	0.09	1.21
2022-06-03	6	7.99	3.42	132.0	0.17	1.02
2022-07-05	37	1.59	1.39	98.9	0.16	1.06
2022-07-08	45	1.63	2.62	114.6	0.13	1.14
2023-02-08	20	3.33	2.64	109.8	0.22	1.00
2023-07-23	48	1.59	0.76	111.2	0.13	1.05
2023-10-14	21	3.68	1.13	99.6	0.13	1.12

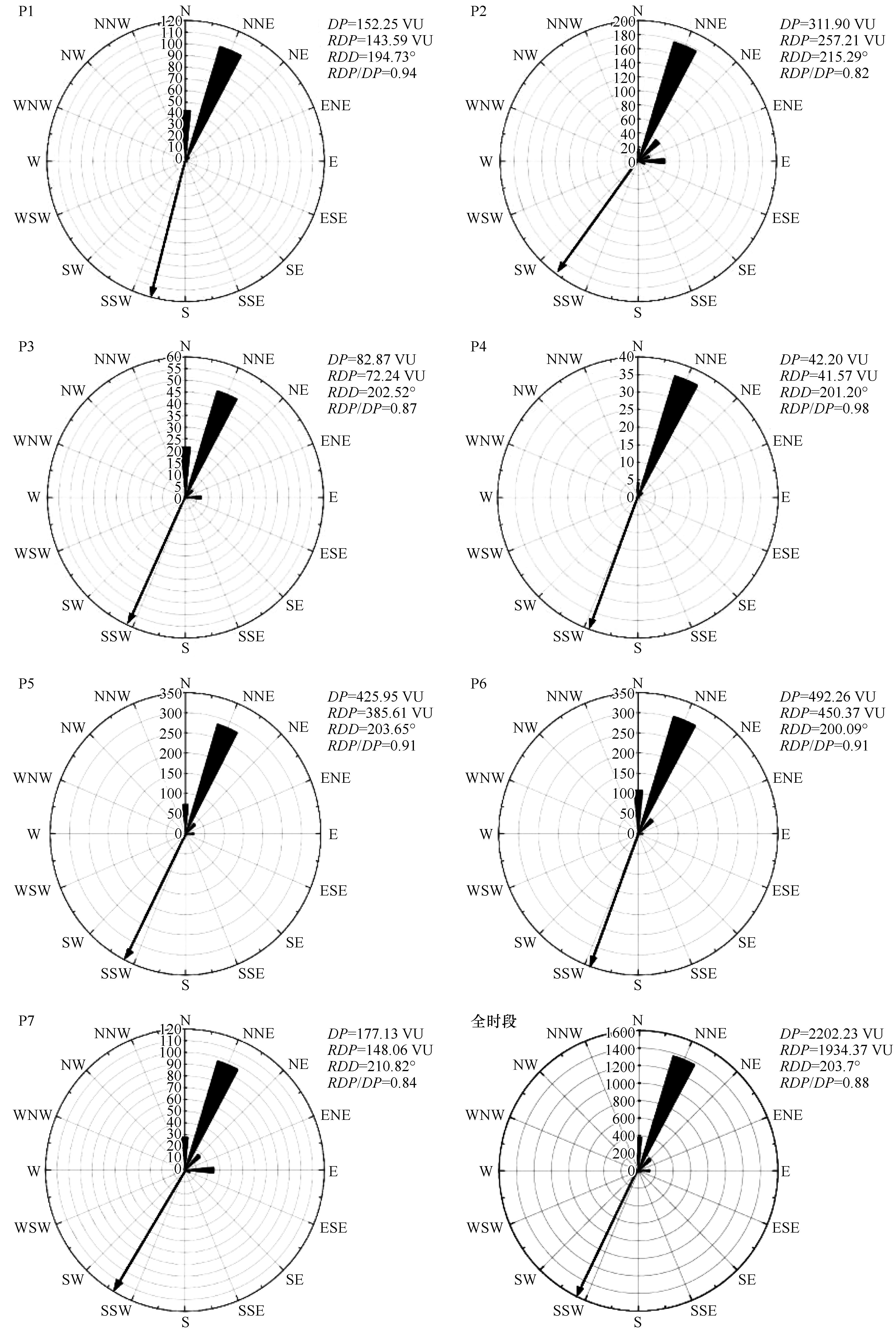

时段	平均风速/（m·s^-1）	起沙风平均风速/（m·s^-1）	起沙风占比	大风占比	极大风占比
P1	3.57	8.76	0.17	0.098	0.018
P2	4.07	8.35	0.23	0.028	0.001
P3	5.25	7.55	0.39	0.022	0.000
P4	5.41	9.78	0.58	0.080	0.077
P5	3.57	8.45	0.18	0.044	0.007
P6	4.17	8.53	0.26	0.060	0.011
P7	4.72	8.04	0.33	0.025	0.001
