Spatiotemporal variation and driving factors of soil wind erosion in the arid and semi-arid areas of northern China in 2001-2020

doi:10.7522/j.issn.1000-694X.2025.00149

Journal of Desert Research ›› 2026, Vol. 46 ›› Issue (2): 164-176.DOI: 10.7522/j.issn.1000-694X.2025.00149

Spatiotemporal variation and driving factors of soil wind erosion in the arid and semi-arid areas of northern China in 2001-2020

Shiyu Wang(), Xuesong Wang()

State Key Laboratory of Earth Surface Processes and Disaster Risk Reduction / MOE Engineering Research Center of Desertification and Blown-Sand Control / Faculty of Geographical Science，Beijing Normal University，Beijing 100875，China

Received:2025-07-24 Revised:2025-09-08 Online:2026-03-20 Published:2026-04-13
Contact: Xuesong Wang

Abstract

Abstract:

The arid and semi-arid areas of northern China have complex and diverse topography and fragile ecological environment. Soil wind erosion is a key factor affecting the stability of the ecosystem and social and economic development in the areas. This study uses the Revised Wind Erosion Equation （RWEQ） to quantitatively analyze the spatial distribution and temporal dynamics of soil wind erosion in the study area from 2001 to 2020， and combined with geographic detector to further explore the driving factors of soil wind erosion. The results indicate that：（1） During the study period， the multi-year average actual soil wind erosion modulus of the study areas is 13 449.59 t·km^-2·a^-1， which was dominated by severe erosion and mainly distributed in the center of the Tarim Basin and the central and western parts of the Inner Mongolia Plateau. The actual soil wind erosion modulus shows a fluctuating downward trend， which decreases at a rate of 102.78 t·km^-2 per year. （2） During the study period， there are significant differences in the actual soil wind erosion modulus of different land use types in the study area. Whether it was the land use type that has been converted or the land use type that has not been converted， the order of the actual soil wind erosion modulus in 2020 was： sandy land > grassland > cultivated land > construction land > forestland. In addition， the actual soil wind erosion modulus of the newly-added grassland and newly-added cultivated land in the arid and semi-arid areas of northern China is relatively high， which were 13 695.88 t·km^-2·a^-1 and 7 933.25 t·km^-2·a^-1 respectively， and were higher than the actual soil wind erosion modulus of the grassland and cultivated land that did not change during the study period， which were 19.90% and 58.53% respectively. （3） Among the many factors affecting the soil wind erosion in the study areas， the weather factor was the dominant factor （q=0.312， P<0.01）. Among them， the wind factor and the actual soil wind erosion modulus show a relatively significant positive correlation of moderate intensity （r=0.43， P<0.05）.

Key words: the arid and semi-arid areas of northern China, RWEQ, geographic detector

CLC Number:

S155.1

Shiyu Wang, Xuesong Wang. Spatiotemporal variation and driving factors of soil wind erosion in the arid and semi-arid areas of northern China in 2001-2020[J]. Journal of Desert Research, 2026, 46(2): 164-176.

Figures/Tables 10

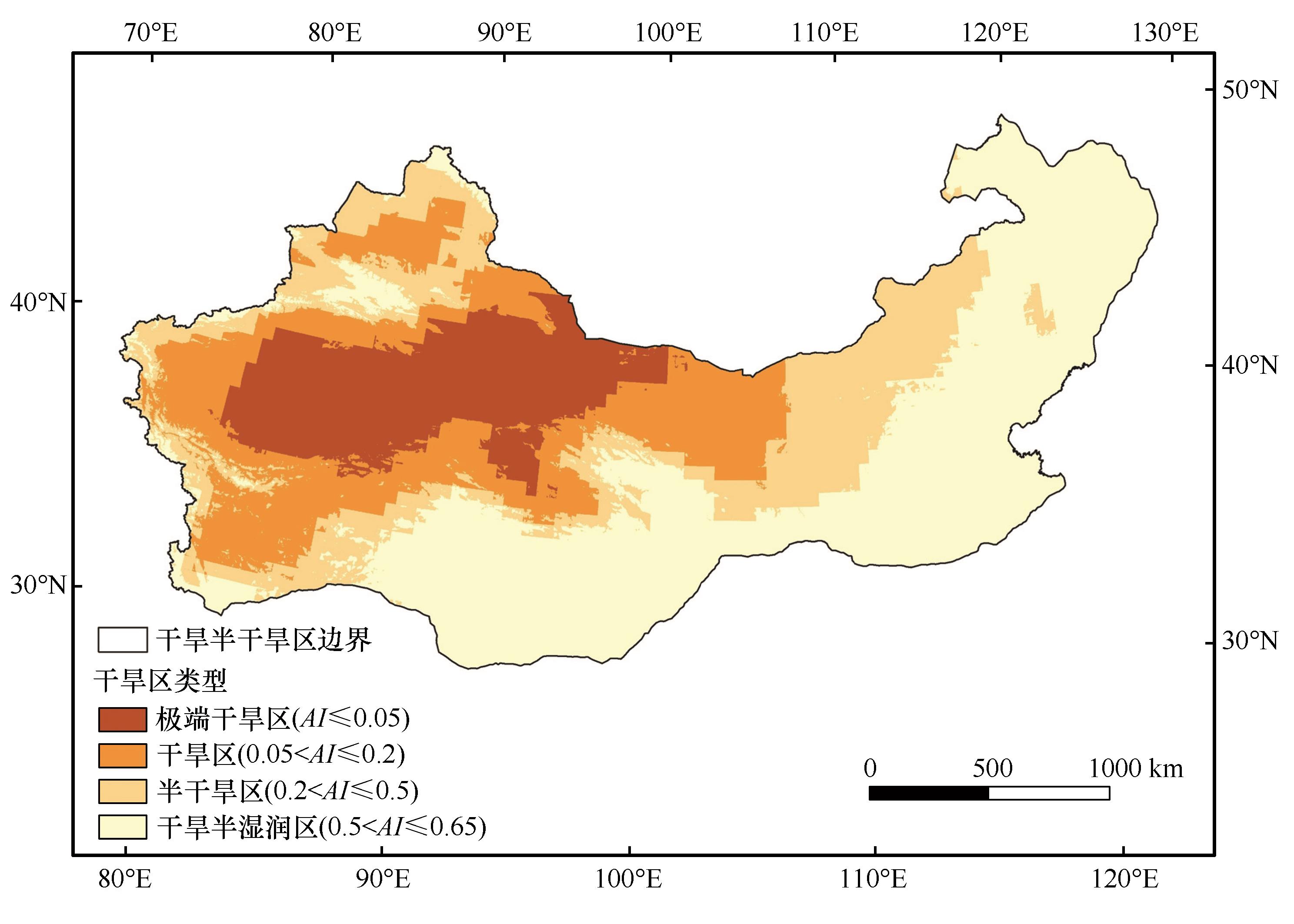

Fig.1 Geographical location in the arid and semi-arid areas of northern China （ASANC）

Table 1 Model input parameters and data description

模型名称	输入数据	参数	时间尺度	时间分辨率	空间分辨率	数据网址
RWEQ	气象数据	风速	2001—2020年	逐时	0.5°×0.625°	https://disc.gsfc.nasa.gov
		降水	2001—2020年	逐时	0.5°×0.625°	https://disc.gsfc.nasa.gov
		雪深	2001—2020年	逐时	0.5°×0.625°	https://disc.gsfc.nasa.gov
		潜在蒸散发	2001—2020年	逐月	1 km×1 km	https://www.tpdc.ac.cn
	土壤数据	土壤质地	不变量	不变量	1 km×1 km	https://www.ncdc.ac.cn
	地形数据	DEM	不变量	不变量	250 m×250 m	https://www.resdc.cn
	植被数据	NDVI	2001—2020年	逐月	1 km×1 km	https://www.resdc.cn
	土地利用	CLCD	2001—2020年	逐年	30 m×30 m	https://www.ncdc.ac.cn

Table 2 Types of interaction between two covariates［50］

交互类型	判定依据
非线性减弱	$q (X 1 ⋂ X 2) < M i n (q (X 1), q (X 2))$
单因子非线性减弱	$M i n (q (X 1), q (X 2)) < q (X 1 ⋂ X 2) < M a x (q (X 1), q (X 2))$
双因子增强	$q (X 1 ⋂ X 2) > M a x (q (X 1), q (X 2))$
独立	$q (X 1 ⋂ X 2) = q (X 1) + q (X 2)$
非线性增强	$q (X 1 ⋂ X 2) > q (X 1) + q (X 2)$

Table 2 Types of interaction between two covariates［50］

交互类型	判定依据
非线性减弱	$q (X 1 ⋂ X 2) < M i n (q (X 1), q (X 2))$
单因子非线性减弱	$M i n (q (X 1), q (X 2)) < q (X 1 ⋂ X 2) < M a x (q (X 1), q (X 2))$
双因子增强	$q (X 1 ⋂ X 2) > M a x (q (X 1), q (X 2))$
独立	$q (X 1 ⋂ X 2) = q (X 1) + q (X 2)$
非线性增强	$q (X 1 ⋂ X 2) > q (X 1) + q (X 2)$

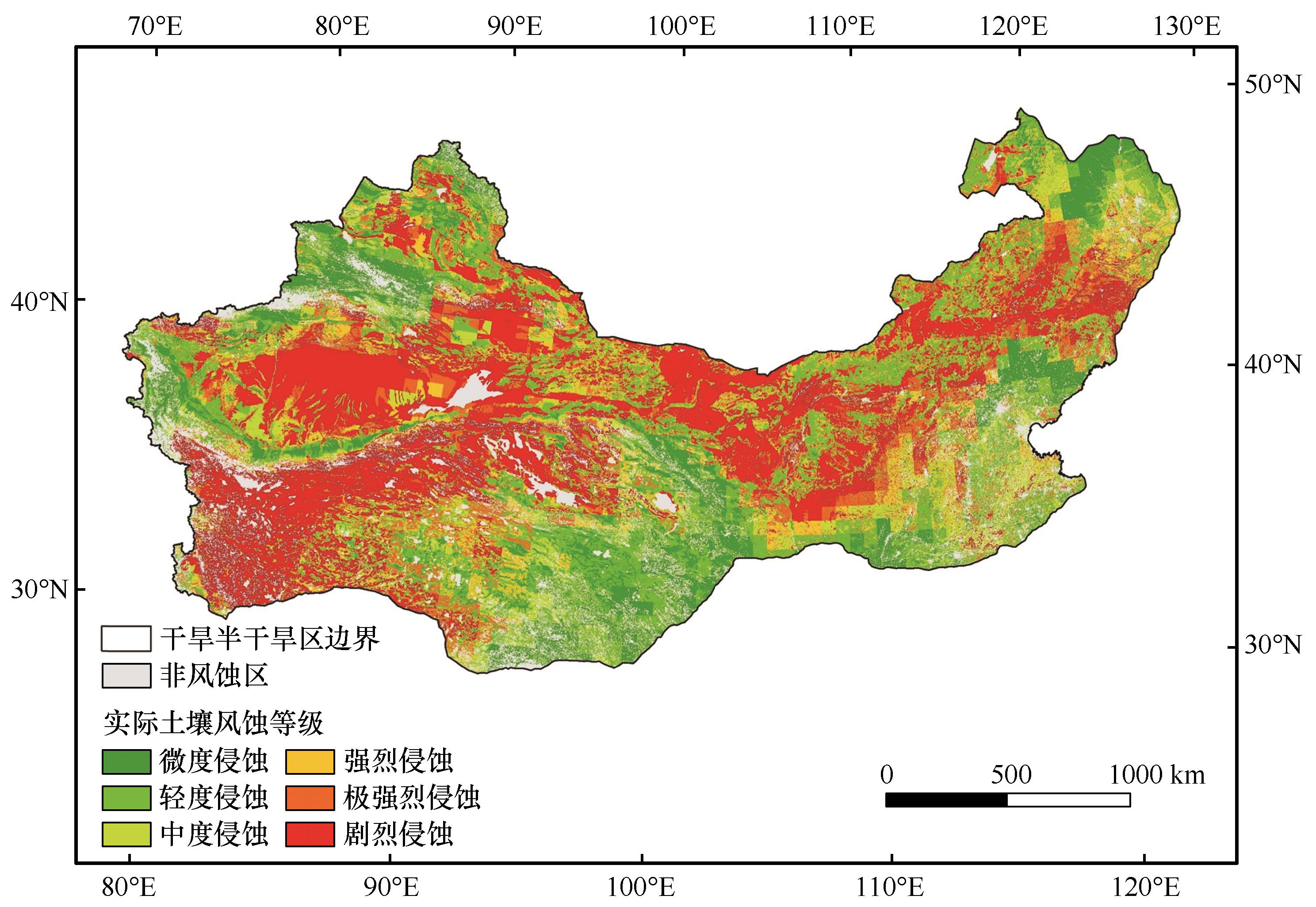

Fig.2 Spatial distribution of multi-year average actual soil wind erosion modulus in the ASANC from 2001 to 2020

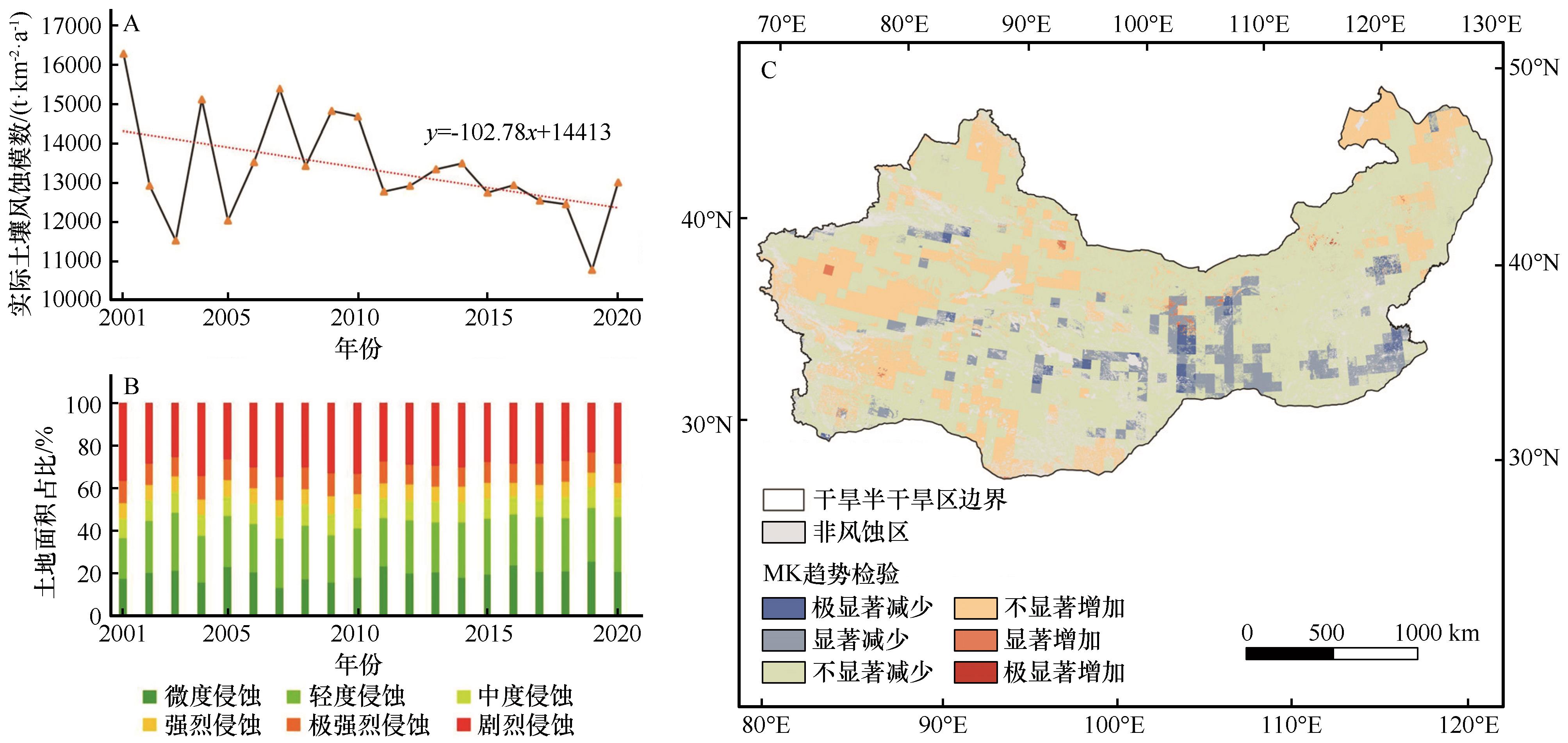

Fig.3 Spatiotemporal dynamics of actual soil wind erosion modulus in the ASANC from 2001 to 2020

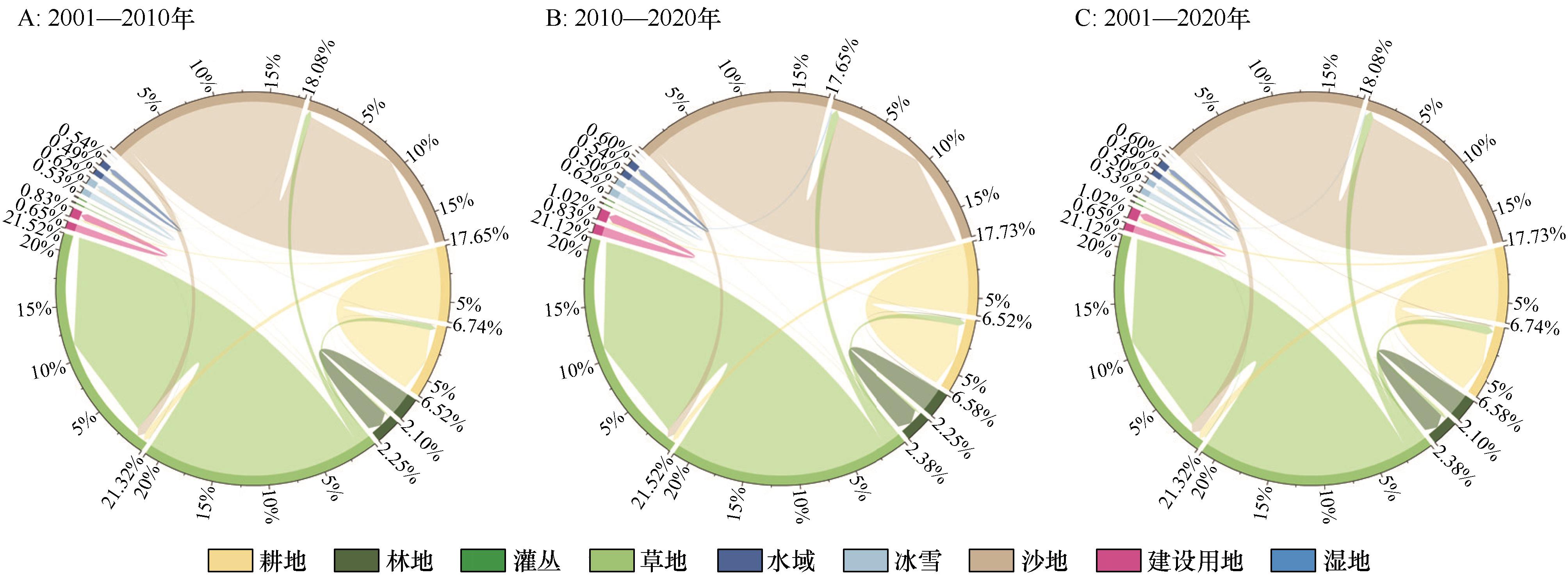

Fig.4 Landuse transfer chord diagram in the ASANC from 2001 to 2020

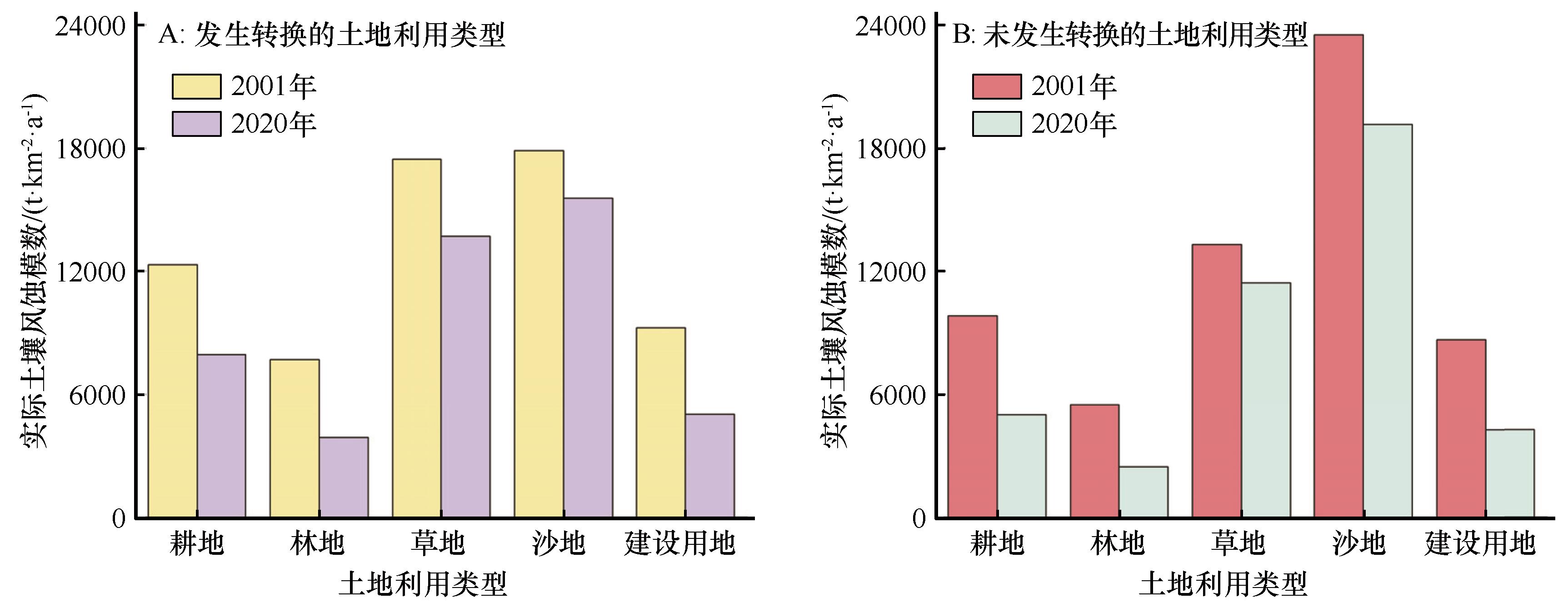

Fig.5 The actual soil wind erosion modulus of different landuse in the ASANC in 2001 and 2020

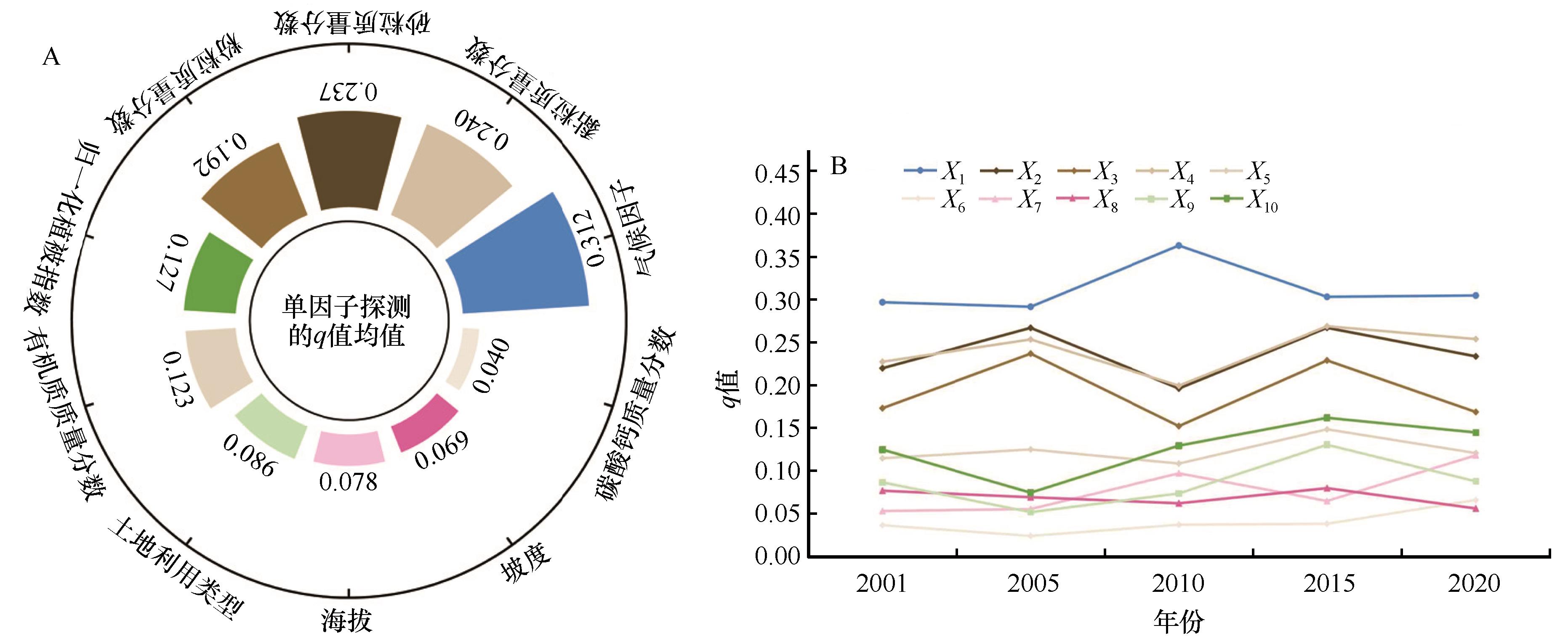

Fig.6 Factor detection of the actual soil wind erosion modulus in the ASANC from 2001 to 2020

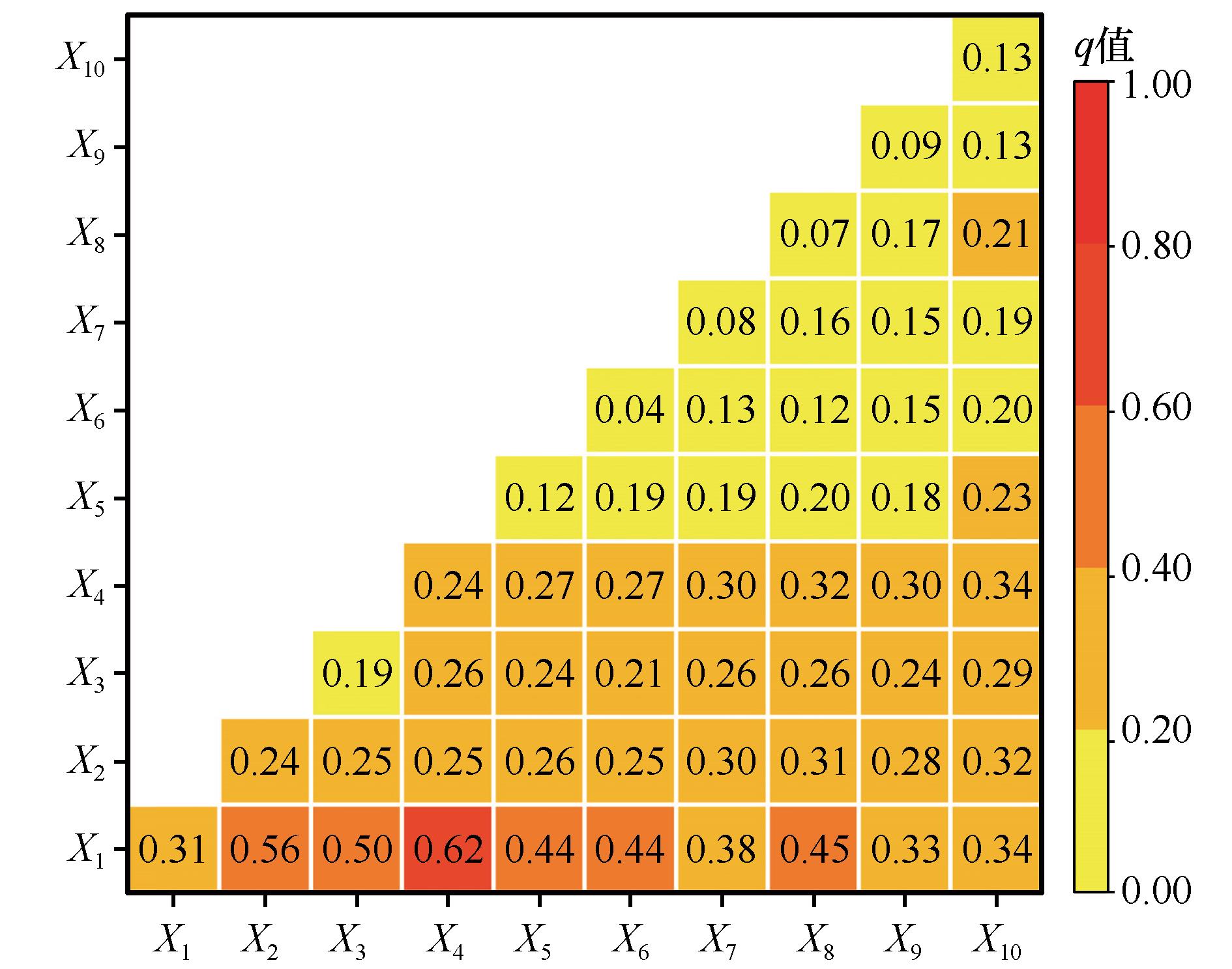

Fig.7 Interaction detection of the actual soil wind erosion modulus in the ASANC from 2001 to 2020

Table 3 Comparison results of RWEQ with measurement［55-56］

研究区域	研究时段	研究方法	纬度	经度	原文结果 /(t·km^-2·a^-1)	本文结果 /(t·km^-2·a^-1)
新疆准东地区	2015年	¹³⁷Cs示踪法	44°16′14″N	90°21′00″E	2 644.08	3 678.03
			45°06′37″N	88°35′20″E	3 855.57	5 266.36
			44°29′58″N	89°54′54″E	1 871.13	4 340.87
			44°47′12″N	89°21′06″E	1 840.09	1 197.04
	2016年	粒度对比法	44°06′34″N	90°00′55″E	2 585.58	2 842.68
	2016年	粒度对比法	45°00′05″N	89°14′04″E	2 857.28	2 199.54

References 64

[1]	Li C J， Fu B J， Wang S，et al.Drivers and impacts of changes in China's drylands［J］.Nature Reviews Earth & Environment，2021，2（12）：858-873.
[2]	Borrelli P， Panagos P， Alewell C，et al.Policy implications of multiple concurrent soil erosion processes in European farmland［J］.Nature Sustainability，2023，6（1）：103-112.
[3]	Field J P， Belnap J， Breshears D D，et al.The ecology of dust［J］.Frontiers in Ecology and the Environment，2010，8（8）：423-430.
[4]	Buschiazzo D E， Zobeck T M.Validation of WEQ， RWEQ and WEPS wind erosion for different arable land management systems in the Argentinean Pampas［J］.Earth Surface Processes and Landforms，2008，33（12）：1839-1850.
[5]	Chepil W S.Dynamics of wind erosion： nature of movement of soil by wind［J］.Soil Science，1945，60（4）：305-320.
[6]	Du H D， Jiao J Y， Jia Y F，et al.Phytogenic mounds of four typical shoot architecture species at different slope gradients on the Loess Plateau of China［J］.Geomorphology，2013，193：57-64.
[7]	Wu Z T， Wang M Y， Zhang H，et al.Vegetation and soil wind erosion dynamics of sandstorm control programs in the agro-pastoral transitional zone of Northern China［J］.Frontiers of Earth Science，2019，13（2）：430-443.
[8]	Borrelli P， Robinson D A， Fleischer L R，et al.An assessment of the global impact of 21st century land use change on soil erosion［J］.Nature Communications，2017，8：2013.
[9]	Cook B I， Miller R L， Seager R.Dust and sea surface temperature forcing of the 1930s “Dust Bowl” drought［J］.Geophysical Research Letters，2008，35（8）：114-118.
[10]	Copeland N S， Sharratt B S， Wu J Q，et al.A wood-strand material for wind erosion control： effects on total sediment loss， PM₁₀ vertical flux， and PM₁₀ loss［J］.Journal of Environmental Quality，2009，38（1）：139-148.
[11]	Bartkowski B， Schepanski K， Bredenbeck S，et al.Wind erosion in european agricultural landscapes：more than physics［J］.People and Nature，2023，5（1）：34-44.
[12]	Webb N P， McGowan H A， Phinn S R，et al.AUSLEM （AUStralian Land Erodibility Model）：a tool for identifying wind erosion hazard in Australia［J］.Geomorphology，2006，78（3/4）：179-200.
[13]	中华人民共和国水利部.2024年中国水土保持公报［R］.北京：中华人民共和国水利部，2025：1-62.
[14]	麻硕士，陈智.土壤风蚀测试与控制技术［M］.北京：科学出版社，2010：113-114.
[15]	张春来，宋长青，王振亭，等.土壤风蚀过程研究回顾与展望［J］.地球科学进展，2018，33（1）：27-41.
[16]	王仁德，李庆，常春平，等.土壤风蚀野外测量技术研究进展［J］.中国沙漠，2019，39（4）：113-128.
[17]	Jarrah M， Mayel S， Tatarko J，et al.A review of wind erosion models：data requirements， processes， and validity［J］.Catena，2020，187：104388.
[18]	Woodruff N P， Siddoway F H.A wind erosion equation［J］.Soil Science Society of America Journal，1965，29（5）：602-608.
[19]	Pasak V.Wind erosion on soil［J］.VUM Zbraslaav Scientific Monographs，1973（3）：78-89.
[20]	Bocharov A P.A Description of Devices Used in the Study of Wind Erosion of Soils［M］.New Delhi，India：Oxonian Press，1984.
[21]	Williams J R， Jones C A， Dyke P T.A modeling approach to determining the relationship between erosion and soil productivity［J］.Transactions of the ASAE，1984，27（1）：129-144.
[22]	Hagen L J.A wind erosion prediction system to meet user needs［J］.Journal of Soil and Water Conservation，1991，46（2）：106-111.
[23]	Shao Y P， Raupach M R， Leys J F.A model for prediction aeolian sand drift and dust entrainment on scales from paddock to region［J］.Australian Journal of Soil Research，1996，34（3）：309-342.
[24]	Fryrear D W， Chen W N， Lester C.Revised wind erosion equation［J］.Annals of Arid Zone，2001，40（3）：265-279.
[25]	Gregory J M， Wilson G R， Singh U B，et al.TEAM： integrated， process-based wind-erosion model［J］.Environmental Modelling & Software，2004，19（2）：205-215.
[26]	Böhner J， Schäfer W， Conrad O，et al.The WEELS model： methods， results and limitations［J］.Catena，2003，52（3/4）：289-308.
[27]	Feng G， Sharratt B.Evaluation of the SWEEP model during high winds on the Columbia Plateau［J］.Earth Surface Processes and Landforms，2009，34（11）：1461-1468.
[28]	巩国丽，刘纪远，邵全琴.基于RWEQ的20世纪90年代以来内蒙古锡林郭勒盟土壤风蚀研究［J］.地理科学进展，2014，33（6）：825-834.
[29]	巩国丽，刘纪远，邵全琴.草地覆盖度变化对生态系统防风固沙服务的影响分析：以内蒙古典型草原区为例［J］.地球信息科学学报，2014，16（3）：426-434.
[30]	Gong G， Liu J， Shao Q，et al.Sand-fixing function under the change of vegetation coverage in a wind erosion area in northern China［J］.Journal of Resources and Ecology，2014，5（2）：105-114.
[31]	江凌，肖燚，欧阳志云，等.基于RWEQ模型的青海省土壤风蚀模数估算［J］.水土保持研究，2015，22（1）：21-25.
[32]	Jiang L， Xiao Y， Zheng H，et al.Spatio-temporal variation of wind erosion in Inner Mongolia of China between 2001 and 2010［J］.Chinese Geographical Science，2016，26（2）：155-164.
[33]	申陆，田美荣，高吉喜，等.浑善达克沙漠化防治生态功能区防风固沙功能的时空变化及驱动力［J］.应用生态学报，2016，27（1）：73-82.
[34]	申陆，田美荣，高吉喜.基于RWEQ模型的浑善达克沙漠化防治生态功能区土壤风蚀与主要影响因子分析［J］.水土保持研究，2016，23（6）：90-97.
[35]	Zhang L， Guo Z L， Li J F，et al.Effect of the type of wind data on regional potential wind erosion estimation［J］.Frontiers in Environmental Science，2022，10：847128.
[36]	高尚玉，张春来，邹学勇，等.京津风沙源治理工程效益［M］.北京：科学出版社，2012.
[37]	陈硕，赵文武.中国干旱半干旱区1990-2020年土壤水蚀时空变化及动态驱动力［J］.水土保持学报，2025，39（1）：10-20.
[38]	陈硕，赵文武，韩逸.中国干旱半干旱区植被降水利用效率时空变化特征及影响因素分析［J］.生态学报，2023，43（24）：10295-10307.
[39]	Peng S Z， Ding Y X， Liu W Z，et al.1 km monthly temperature and precipitation dataset for China from 1901 to 2017［J］.Earth System Science Data，2019，11（4）：1931-1946.
[40]	Peng S Z， Ding Y X， Wen Z M，et al.Spatiotemporal change and trend analysis of potential evapotranspiration over the Loess Plateau of China during 2011-2100［J］.Agricultural and Forest Meteorology，2017，233：183-194.
[41]	Yang J， Huang X.The 30 m annual land cover dataset and its dynamic in China from 1990 to 2019［J］.Earth System Science Data，2021，13（8）：3907-3925.
[42]	Fryrear D W， Bilbro J D， Saleh A，et al.RWEQ：improved wind erosion technology［J］.Journal of Soil and Water Conservation，2000，55（2）：183-189.
[43]	Hargreaves G H， Samani Z A.Estimating potential evapotranspiration［J］.Journal of the Irrigation and Drainage Division，1982，108（3）：225-230.
[44]	Saleh A.Soil roughness measurement：chain method［J］.Journal of Soil and Water Conservation，1993，48（6）：527.
[45]	李军，游松财，黄敬峰.基于GIS的中国陆地表面粗糙度长度的空间分布［J］.上海交通大学学报（农业科学版），2006，23（2）：185-189.
[46]	尚润阳，祁有祥，赵廷宁，等.植被对风及土壤风蚀影响的野外观测研究［J］.水土保持研究，2006，21（4）：37-39.
[47]	Gocic M， Trajkovic S.Analysis of changes in meteorological variables using Mann-Kendall and Sen's slope estimator statistical tests in Serbia［J］.Global and Planetary Change，2013，100：172-182.
[48]	Xiao C W， Ye J Q， Esteves R M，et al.Using Spearman's correlation coefficients for exploratory data analysis on big dataset［J］.Concurrency and Computation：Practice and Experience，2016，28（14）：3866-3878.
[49]	刘瑞，朱道林.基于转移矩阵的土地利用变化信息挖掘方法探讨［J］.资源科学，2010，32（8）：1544-1550.
[50]	王劲峰，徐成东.地理探测器：原理与展望［J］.地理学报，2017，72（1）：116-134.
[51]	Song Y Z， Wang J F， Ge Y，et al.An optimal parameters-based geographical detector model enhances geographic characteristics of explanatory variables for spatial heterogeneity analysis： cases with different types of spatial data［J］.GIScience & Remote Sensing，2020，57（5）：593-610.
[52]	迟文峰，白文科，刘正佳，等.基于RWEQ模型的内蒙古高原土壤风蚀研究［J］.生态环境学报，2018，27（6）：1024-1033.
[53]	王洋洋，肖玉，谢高地，等.基于RWEQ的宁夏草地防风固沙服务评估［J］.资源科学，2019，41（5）：980-991.
[54]	Wang S Y， Xu X M.Spatiotemporal variation in soil wind erosion in the Northern slope of the Tianshan Mountains from 2000 to 2018［J］.Land，2024，13（10）：1604.
[55]	丁肇龙，汪君，胥鹏海，等.基于¹³⁷Cs的新疆准东地区不同土地利用类型土壤风蚀特征研究［J］.土壤，2018，50（2）：398-403.
[56]	张婷婷.准东地区土壤颗粒分形研究及其风蚀量估算［D］.乌鲁木齐：新疆大学，2018.
[57]	巩国丽.中国北方土壤风蚀时空变化特征及影响因素分析［D］.北京：中国科学院大学，2014.
[58]	杜睿哲，李文栋，高文浩，等.气候、地表覆被变化对砒砂岩区风蚀时空变化的影响［J］.水土保持研究，2023，30（5）：31-40.
[59]	李庆，周娜，王盛，等.气候变化和人类活动对土壤风蚀影响的定量评估：以内蒙古自治区为例［J］.中国沙漠，2024，44（1）：178-188.
[60]	胡媛，王宗乾，刘卫，等.一种基于CNN-SVR多模态信息融合的GNSS-R风速反演研究［J］.测绘科学，2023，48（12）：74-83.
[61]	Lian J， Huang S R， Shao J H，et al.TerraWind：a deep learning-based near-surface winds downscaling model for complex terrain region［J］.Geophysical Research Letters，2024，51（23）：e2024GL112124.
[62]	南岭，杜灵通，王锐.土壤风蚀模型研究进展［J］.世界科技研究与发展，2013，35（4）：505-509.
[63]	Lyu X， Li X B， Wang H，et al.Soil wind erosion evaluation and sustainable management of typical steppe in Inner Mongolia，China［J］.Journal of Environmental Management，2021，277：111488.
[64]	Kaplan S， Basaran M， Erpul G.Assessing the performance of wind erosion prediction models of RWEQ and SWEEP by direct measurements in an arid region［J］.Soil and Tillage Research，2024，240：106086.
