The water-heat coupling transmission mechanism under extreme rainfall events and its influence on diurnal evaporation

doi:10.7522/j.issn.1000-694X.2025.00173

Journal of Desert Research ›› 2026, Vol. 46 ›› Issue (3): 97-108.DOI: 10.7522/j.issn.1000-694X.2025.00173

Previous Articles Next Articles

The water-heat coupling transmission mechanism under extreme rainfall events and its influence on diurnal evaporation

Ruixiang Zhang¹(), Jihua Chu², Jueke Li¹, Yaxian Li¹, Shuixian Wang¹()

^1.College of Earth and Environmental Sciences，Lanzhou University，Lanzhou 730000，China
^2.Wuwei Hydrology and Water Resources Survey Center，Wuwei 733000，Gansu，China

Received:2025-11-07 Revised:2025-12-24 Online:2026-05-20 Published:2026-06-11
Contact: Shuixian Wang

Abstract

Abstract:

Rainfall is a crucial factor driving the transport of soil water and heat. Studying the transport of soil water and heat under extreme rainfall events is of great significance for the sustainable development of ecosystems in arid regions. In this study， the Jiudun Experimental Field in Wuwei was selected as the research site. Based on long-term observation data from the lysimeter and meteorological monitoring data from hydrological stations， the Hydrus-1D water-heat coupling model was used for simulation and analysis to reveal the driving mechanism of extreme rainfall on soil water and heat transport in arid regions and its impact on diurnal evaporation. The results show that the shallow soil （0-20 cm） responds intensely to sudden extreme rainfall， while the deep soil （>40 cm） is more affected by continuous extreme rainfall. The evaporation process is regulated by the migration of the zero-flux plane of soil water potential. During the day， the convergence near the surface inhibits the upward movement of liquid water， while at night， the divergence promotes the diffusion of water vapor. Below a depth of 40 cm， when the temperature gradient is less than 0.075 ℃·cm⁻¹ and the temperature fluctuation is less than 2 ℃， the thermal buffering effect significantly weakens the driving force of evaporation， forming a lagged water supply boundary. The research results can provide a scientific basis for water resource management in arid regions under extreme climate conditions.

Key words: extreme rainfall, soil moisture, water-heat coupling, diurnal evaporation, numerical simulation

CLC Number:

S152

Ruixiang Zhang, Jihua Chu, Jueke Li, Yaxian Li, Shuixian Wang. The water-heat coupling transmission mechanism under extreme rainfall events and its influence on diurnal evaporation[J]. Journal of Desert Research, 2026, 46(3): 97-108.

Figures/Tables 13

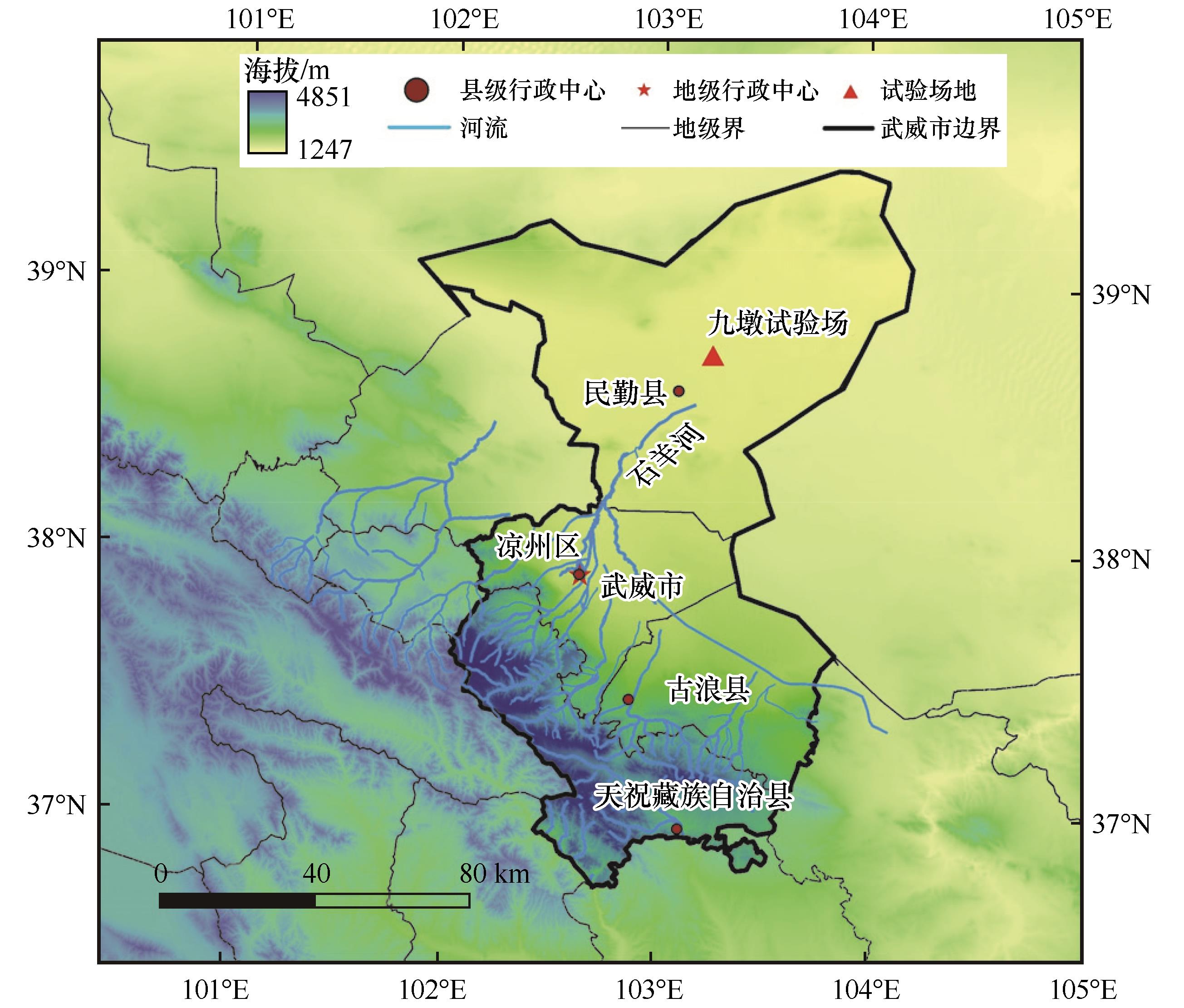

Fig.1 Schematic diagram of the study area

Table 1 Physical properties of different soil layers in the study area

土层/cm	土壤颗粒组成/%			容重 /(g·cm^-3)
土层/cm	黏粒	粉粒	砂粒	容重 /(g·cm^-3)
0~10	20.44	37.08	42.48	1.44
10~20	21.28	36.74	41.98	1.44
20~40	21.06	37.57	41.37	1.50
40~80	20.78	37.58	41.64	1.52

Table 2 Soil hydraulic parameters optimized for different layers

土层/cm	$θ r$ /(cm·cm^-3)	$θ s$ /(cm·cm^-3)	$α$ /cm^-1	$n$	$k s$ /(cm·h^-1)
0~10	0.057	0.39	0.045	1.70	4.24
10~20	0.045	0.41	0.060	2.10	6.20
20~40	0.076	0.41	0.038	1.40	1.80
40~80	0.082	0.44	0.028	1.25	1.20

Table 2 Soil hydraulic parameters optimized for different layers

土层/cm	$θ r$ /(cm·cm^-3)	$θ s$ /(cm·cm^-3)	$α$ /cm^-1	$n$	$k s$ /(cm·h^-1)
0~10	0.057	0.39	0.045	1.70	4.24
10~20	0.045	0.41	0.060	2.10	6.20
20~40	0.076	0.41	0.038	1.40	1.80
40~80	0.082	0.44	0.028	1.25	1.20

Table 3 Scenario settings and basis

情景类别	设置	时间（月-日）	日最大降水量/mm	日最大降水时间（月-日）	降水量/mm
情景类别	设置	时间（月-日）	日最大降水量/mm	日最大降水时间（月-日）	第1天	第2天	第3天	第4天	第5天	第6天	第7天
A	突发型极端降水	08-21—08-27	21.6	08-24	0.0	0.0	0.0	21.6	0.0	0.0	0.0
B	持续型极端降水	08-31—09-06	26.3	09-03	1.6	1.0	0.0	26.3	7.5	11.5	0.6
C	基准期	10-11—10-17	0.0	无	0.0	0.0	0.0	0.0	0.0	0.0	0.0

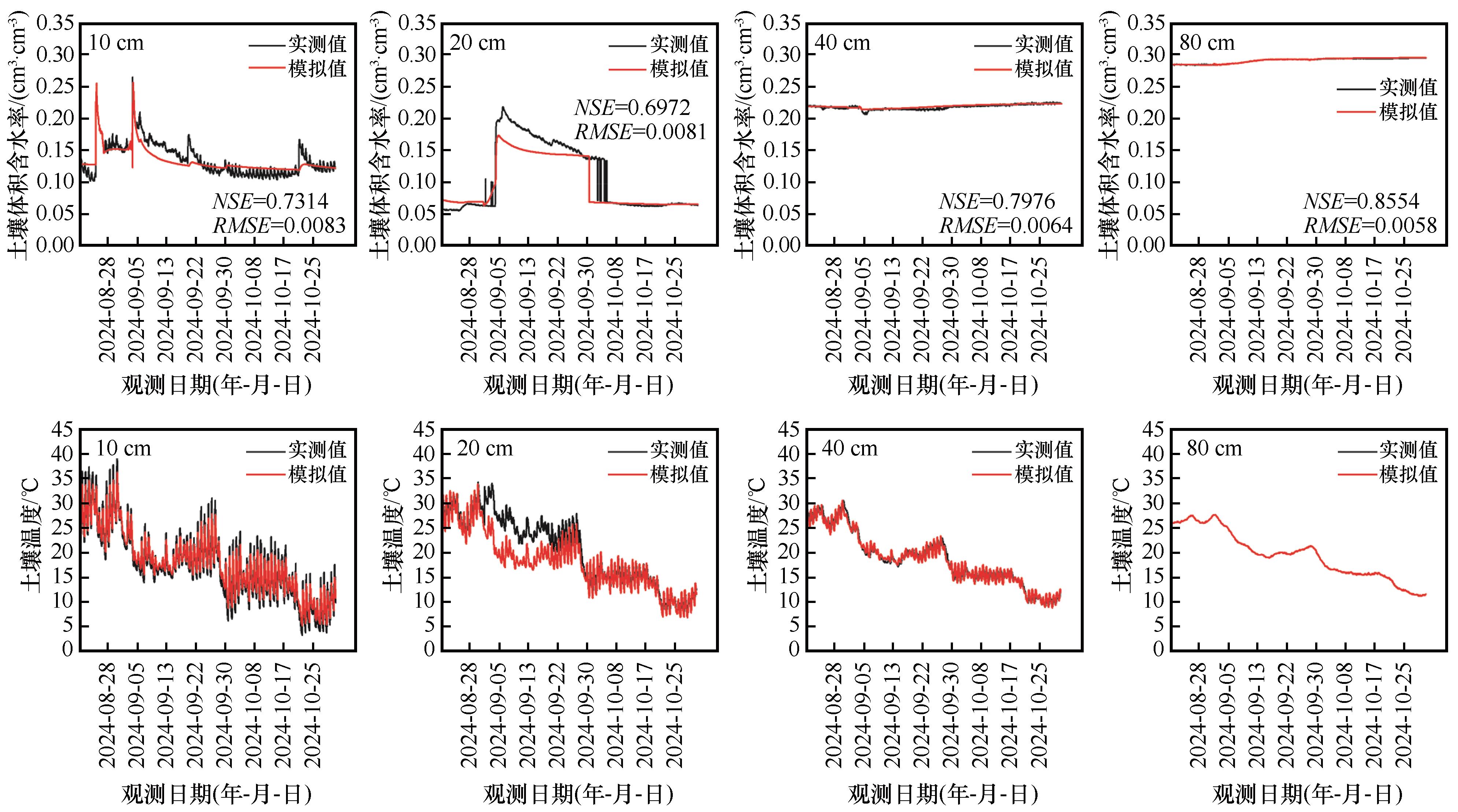

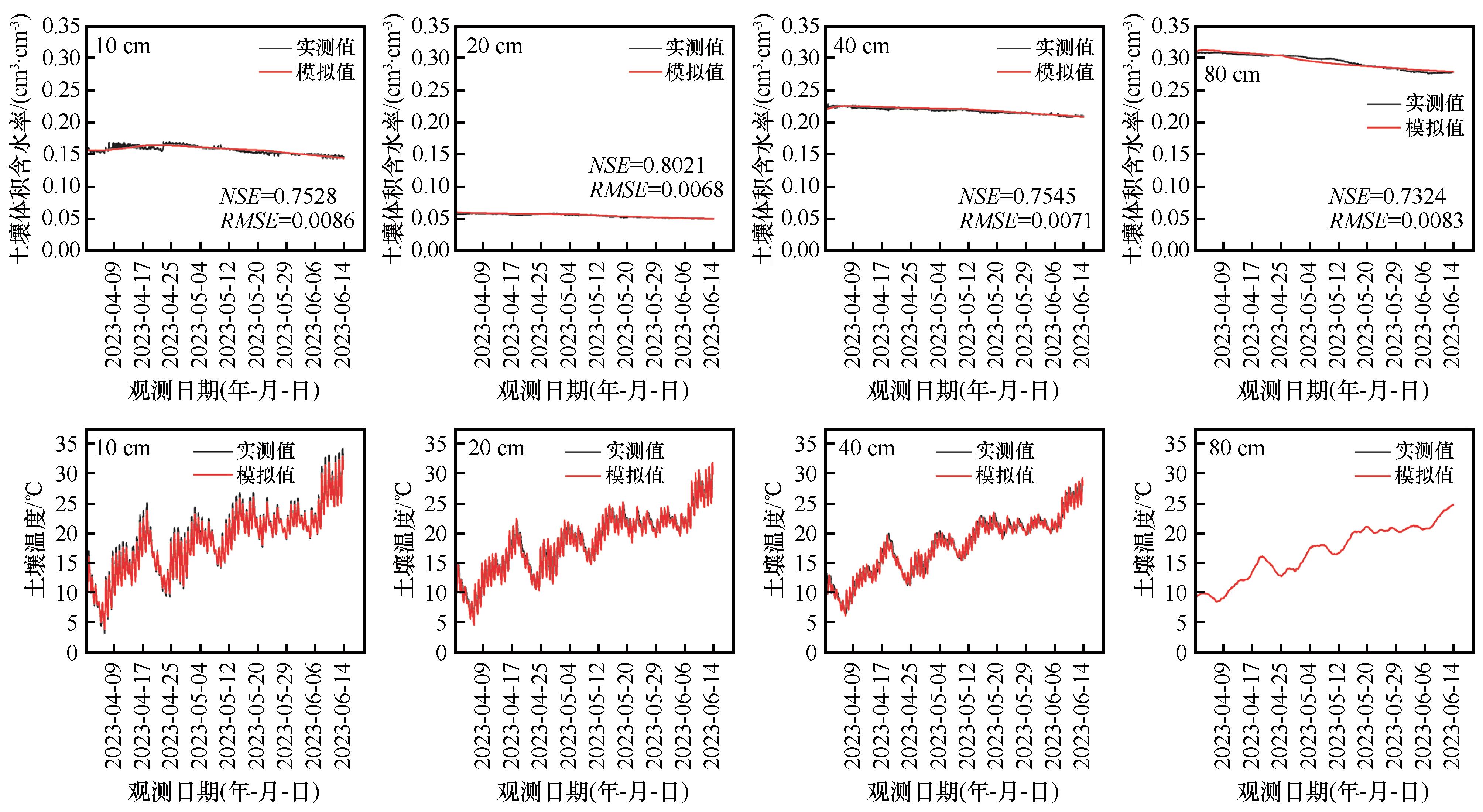

Fig.2 shows the measured and simulated values of soil moisture content and temperature at regular intervals

Fig.3 Shows the measured and simulated values of soil moisture content and temperature during the verification period

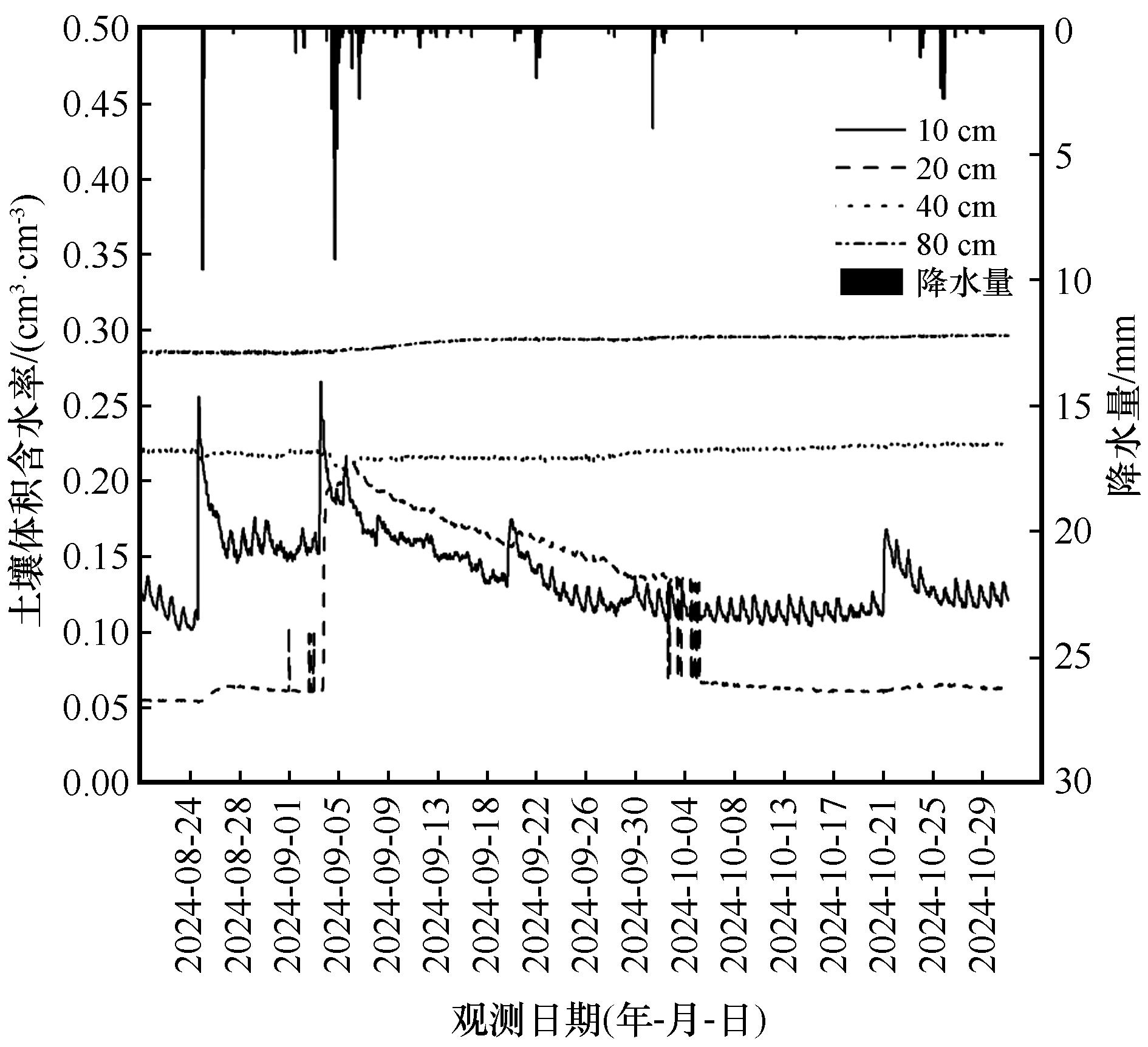

Fig.4 Responses of soil moisture at different depths to extreme rainfall

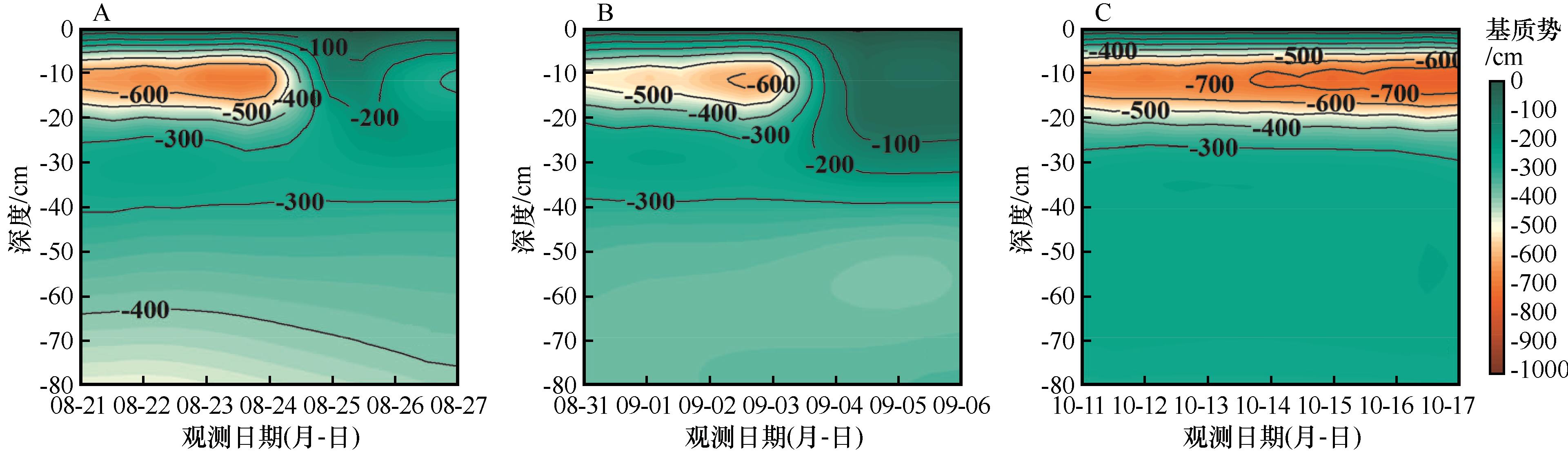

Fig.5 Spatiotemporal distribution of soil matrix potential under extreme rainfal

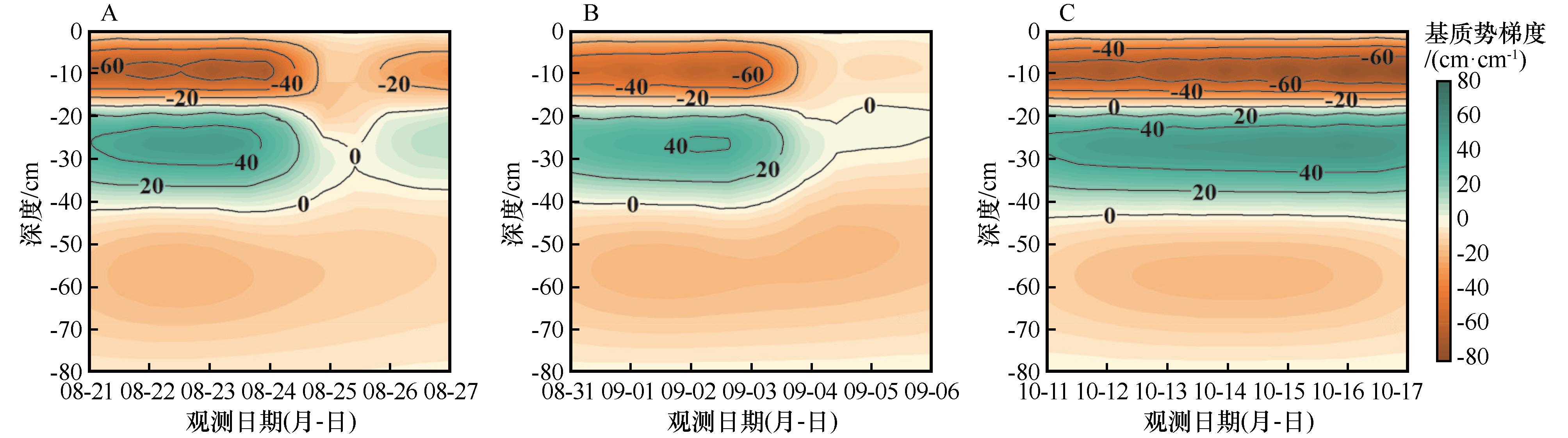

Fig.6 Spatiotemporal distribution of soil matrix potential gradient under extreme rainfall

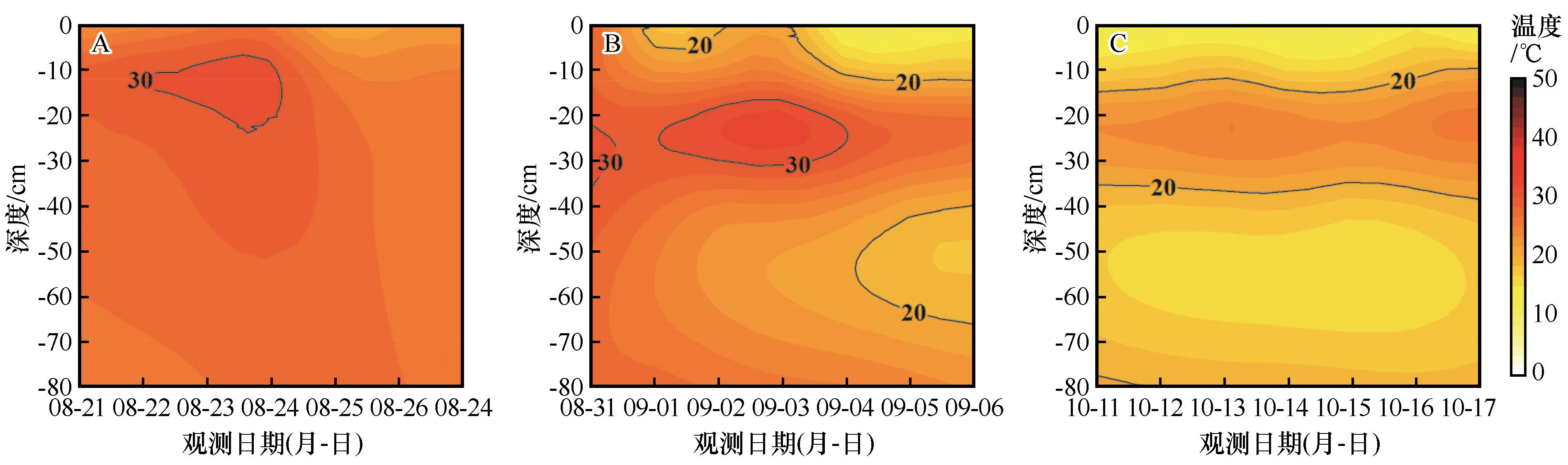

Fig. 7 Spatiotemporal distribution of soil temperature under extreme rainfall

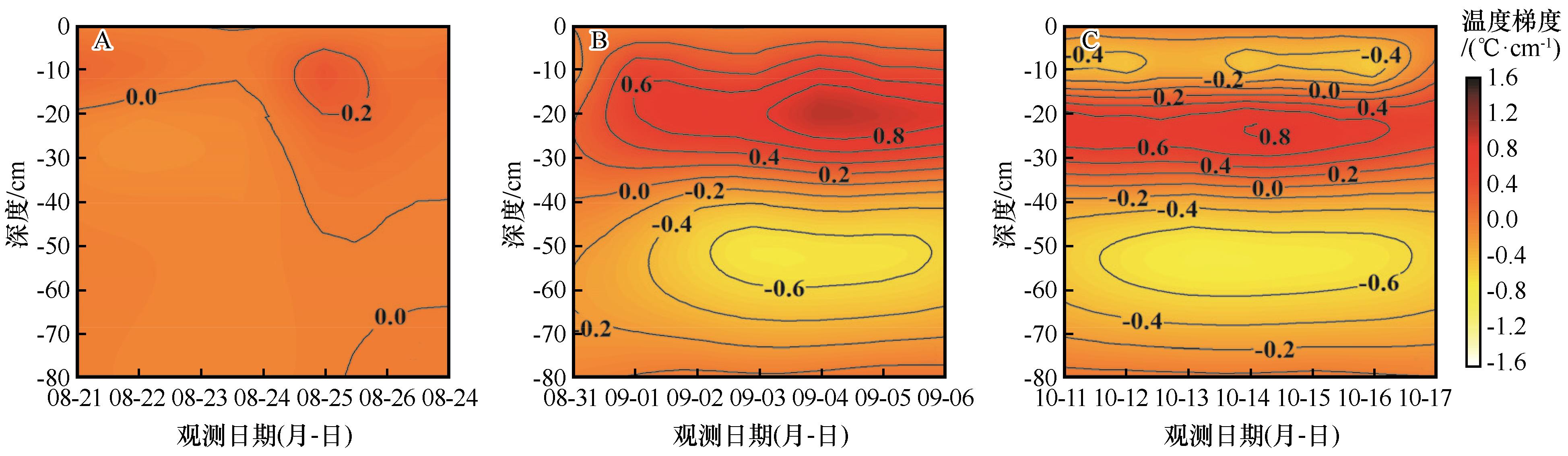

Fig.8 Spatiotemporal distribution of soil temperature gradient under extreme rainfall

Table 4 Correlation between soil water content at different depths and evaporation

土层/cm	观测日期（月-日）
土层/cm	08-21	08-22	08-23	08-24	08-25	08-26	08-27
10	0.49^*	0.67^**	-0.08	0.67^**	0.21	0.12	0.69^**
20	-0.26	0.21	0.15	-0.34	-0.31	0.11	0.42^*
40	0.37	0.11	0.29	-0.00	-0.26	0.05	0.01
80	-0.04	-0.35	-0.08	0.09	0.03	-0.21	0.43^*

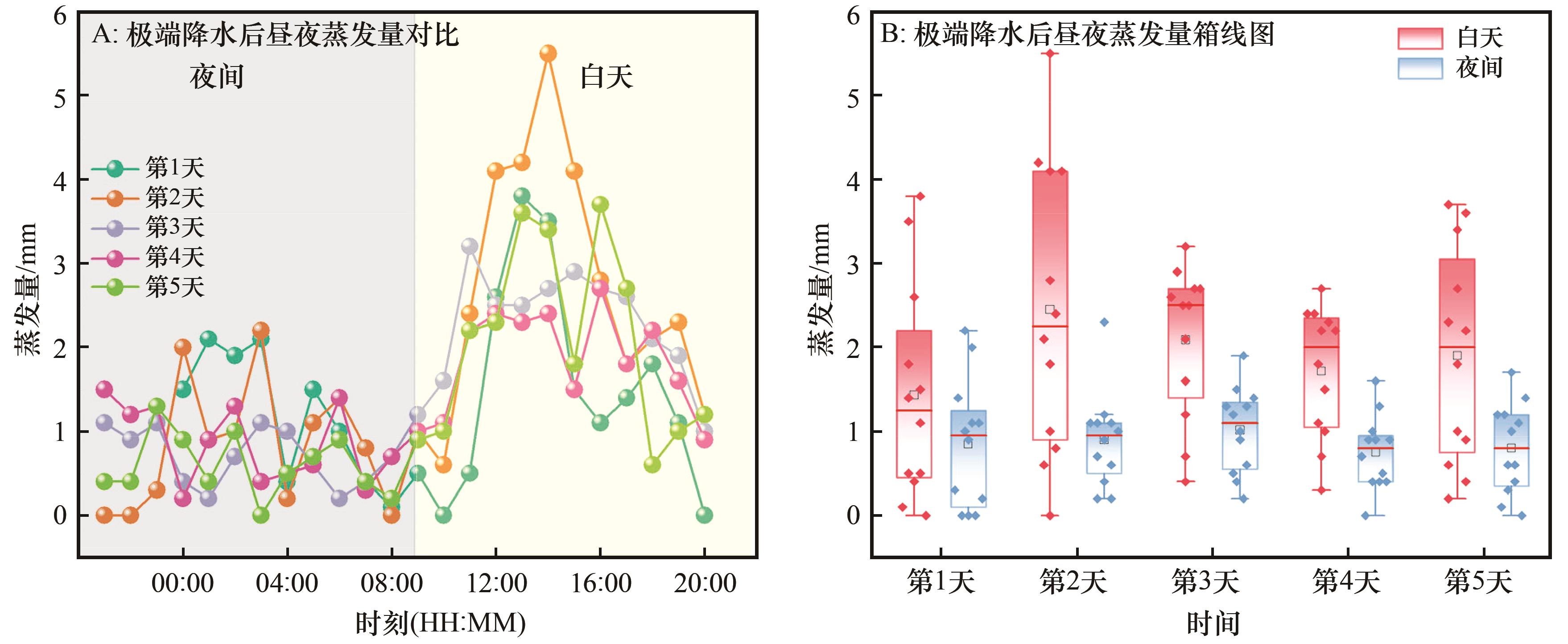

Fig.9 Variation of diurnal evaporation after extreme rainfall

References 32

[1]	Zhai P M， Pan X H.Change in extreme temperature and precipitation over Northern China during the second half of the 20th century［J］.Acta Geographica Sinica，2003，58（S1）：1-10.
[2]	郭睿思，刘目兴，易军，等.干旱和半干旱区生物结皮层及其覆盖土壤的蒸发特征［J］.农业工程学报，2025，41（6）：117-127.
[3]	蔡霞，宋燕，宿欣，等.山西北部地区极端降水时空变化及其大气环流特征［J］.干旱区研究，2025，42（11）：1966-1981.
[4]	董晴雪，罗斯琼，文小航，等.近60年来藏东南降水变化及其对土壤温度与冻融过程的影响［J］.高原气象，2022，41（2）：404-419.
[5]	夏鸿华，杨林山，冯起，等.西部高寒山区气候变化对径流影响的研究进展［J］.盐湖研究，2025，33（4）：12-25.
[6]	马稚桐，王文科，赵明，等.半干旱地区地表-地下水系统水热运移与裸土蒸发研究［J］.水文地质工程地质，2021，48（4）：7-14.
[7]	Du C， Yu J， Wang P，et al.Analyzing the mechanisms of soil water and vapor transport in the desert vadose zone of the extremely arid region of Northern China［J］.Journal of Hydrology，2018，558：592-606.
[8]	Scanlon B R， Keese K， Reedy R C，et al.Variations in flow and transport in thick desert vadose zones in response to paleoclimatic forcing （0-90 kyr）：field measurements，modeling，and uncertainties［J］.Water Resources Research，2003，39（7）：001604.
[9]	Xiang L， Yu Z， Chen L，et al.Evaluating coupled water，vapor，and heat flows and their influence on moisture dynamics in arid regions［J］.Journal of Hydrologic Engineering，2012，17（4）：565-577.
[10]	Lu T， Zheng C， Zhou B，et al.Response of liquid water and vapor flow to rainfall events in sandy soil of arid and semi-arid regions［J］.Agronomy，2023，13（9）：2424.
[11]	马兵，滕远，汪星，等.土壤干化背景下种植苜蓿土壤水分对降雨的响应［J］.生态学报，2025，45（12）：5900-5913.
[12]	Huang J， Hou R， Yang H.Diurnal pattern of liquid water and water vapor movement affected by rainfall in a desert soil with a high water table［J］.Environmental Earth Sciences，2016，75（1）：73.
[13]	曾亦键，万力，苏中波，等.浅层包气带水汽昼夜运移规律及其数值模拟研究［J］.地学前缘，2008（5）：330-343.
[14]	Liu B C， Liu W， Peng S W.Study of heat and moisture transfer in soil with a dry surface layer［J］.International Journal of Heat and Mass Transfer，2005，48（21/22）：4579-4589.
[15]	夏逍雯，董文明，卢刚，等.荒漠绿洲过渡带灌丛沙堆国内研究进展［J］.生态科学，2025，44（5）：262-270.
[16]	卫雨西，陈丽娟，席海洋，等.石羊河流域土壤水分和电导率的空间分布特征［J］.中国沙漠，2023，43（3）：264-273.
[17]	夏鸿华，杨林山，冯起，等.石羊河流域产水服务供需时空变化及驱动因子［J］.中国沙漠，2024，44（6）：87-99.
[18]	冯福学，柴强.武威绿洲灌区冬小麦田土壤水热特征对耕作措施的响应［J］.西北农业学报，2014，23（8）：52-59.
[19]	Seki K， Toride N，Th.van Genuchten M.Closed‐form hydraulic conductivity equations for multimodal unsaturated soil hydraulic properties［J］.Vadose Zone Journal，2022，21（1）：e20168.
[20]	Gao W， Liu X， Zheng C，et al.Comparison of the soil water，vapor，and heat dynamics between summer maize and bare fields in arid and semi-arid areas［J］.Agronomy，2023，13（4）：1171.
[21]	王强民，赵明，彭鸿杰，等.旱区不同层状结构土壤的水分运移过程与模拟［J］.水文地质工程地质，2023，50（4）：84-94.
[22]	吉吉佳门，程一本，谌玲珑，等.科尔沁沙地樟子松人工林土壤水分动态及其对降雨的响应［J］.干旱区研究，2023，40（5）：756-766.
[23]	赵贵章，王文科，侯莉莉，等.干旱半干旱地区包气带热参数模型研究［J］.水文地质工程地质，2009，36（5）：107-110.
[24]	Pfletschinger-Pfaff H， Prömmel K， Schüth C，et al.Sensitivity of vadose zone water fluxes to climate shifts in arid settings［J］.Vadose Zone Journal，2014，13（1）：1-14.
[25]	尤全刚，薛娴，彭飞，等.高寒草甸草地退化对土壤水热性质的影响及其环境效应［J］.中国沙漠，2015，35（5）：1183-1192.
[26]	李乃玉，吴丽丽，杨林山，等.基于SHAW模型的祁连山浅山区荒漠草地土壤水热动态模拟研究［J］.冰川冻土，2024，46（3）：993-1005.
[27]	刘战东，秦安振，宁东峰，等.降雨级别对农田蒸发和土壤水再分布的影响模拟［J］.灌溉排水学报，2016，35（8）：1-8.
[28]	Jackson R D， Kimball B A， Reginato R J，et al.Diurnal soil-water evaporation：time-depth-flux patterns［J］.Soil Science Society of America Journal，1973，37（4）：505-509.
[29]	Shokri N， Salvucci G D.Evaporation from porous media in the presence of a water table［J］.Vadose Zone Journal，2011，10（4）：1309-1318.
[30]	Li H， Wang W， Liu B.The daily evaporation characteristics of deeply buried phreatic water in an extremely arid region［J］.Journal of Hydrology，2014，514：172-179.
[31]	刘秀强，陈喜，刘琴，等.西北干旱区尾闾湖过渡带陆面蒸发和潜水对土壤水影响的同位素分析［J］.干旱区资源与环境，2021，35（6）：52-59.
[32]	张维福，展秀丽，马思怡，等.基于Hydrus-1D模型的宁夏河东沙地固定沙丘花棒林土壤水分动态模拟［J］.水土保持通报，2025，45（5）：267-276.
